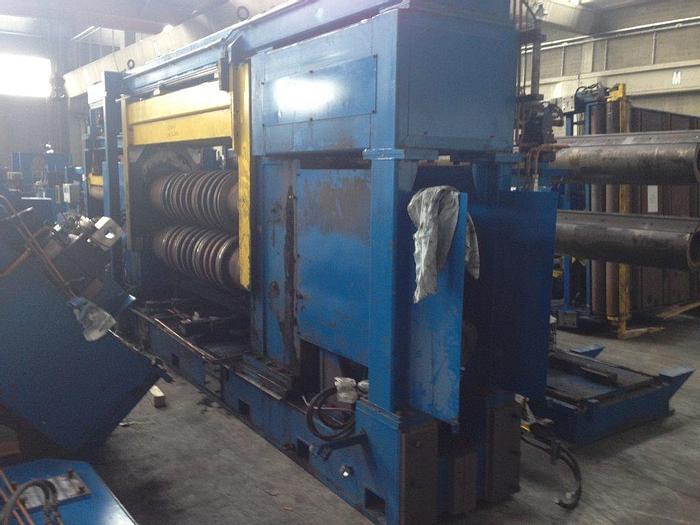

SA.MO. Heavy Gauge Slitting Line (Us.) #3340

2050mm x 12.7mm Coil To Coil Slitting Line

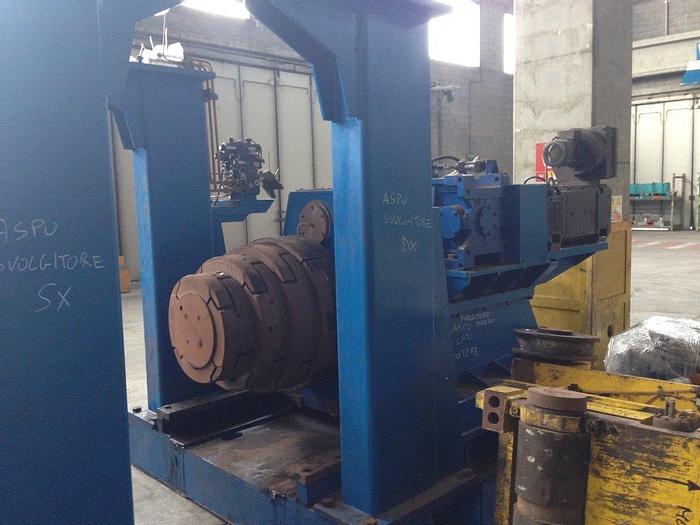

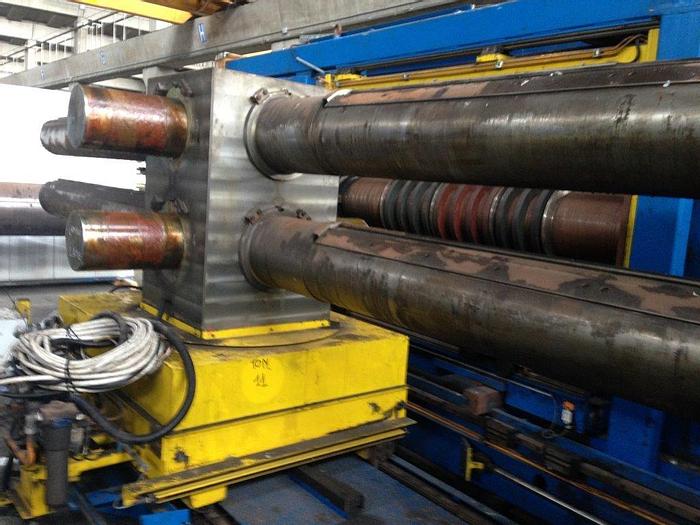

30 t decoiler & recoiler, Ø325mm slitter arbor, automatic slitter tooling changer, mobile strip tension unit... a real "mill duty" line.

The manufacturer, SA.MO. was part of the FIMI Group.

The line works WITH LOOP up to a 6mm material thickness, IN "PULL" MODE with thicker material than 6mm. The selection of the operating mode < is from the control panel.

Process Material: M.S.

Maximum Tensile Strength: 630 N/mm2

Maximum Yield: 450 N/mm2

Elongation: 20%

Coil Max. Weight: 30 t

Minimum Material Thickness: 2.7mm

Maximum Material Thickness: 12.7mm

Minimum / Maximum Entry Coil Width: 400mm / 2050mm

Minimum / Maximum Entry Coil ID: 610-760mm / 850mm

Minimum / Maximum Exit Coil ID: 508mm / 610mm (w. spacers)

Maximum Entry Coil OD: 900mm / 2200mm

Maximum Exit Coil OD: 680mm / 2000mm

Minimum Slit Width:

80mm at max. 4mm material thickness

100mm at max. 8mm material thickness

150mm at max. 12.7mm material thickness

Line Speed:

0-100m / min with material thickness up to 8mm

0-50m / min with material thickness 8-12.7mm

Coil Threading Speed: 10m / min

Number of slits with Ø500mm* circular knives:

(* minimum Ø460mm after grinding)

> see Attach.

Line direction: right to left

Passline Height: 1250mm

Line-reference: center

Unwinding: from top

Voltage:

400 V / 50 z

Aux. 230 V / 50 Hz

Electrovalves 24 V D.C.

Hydraulics:

120 bar

Unit Cooling: by air/oil heat exchanger

Pneumatics:

6 bar

(compressed air consumption ca. 1/2 m3 per-hour)

-
