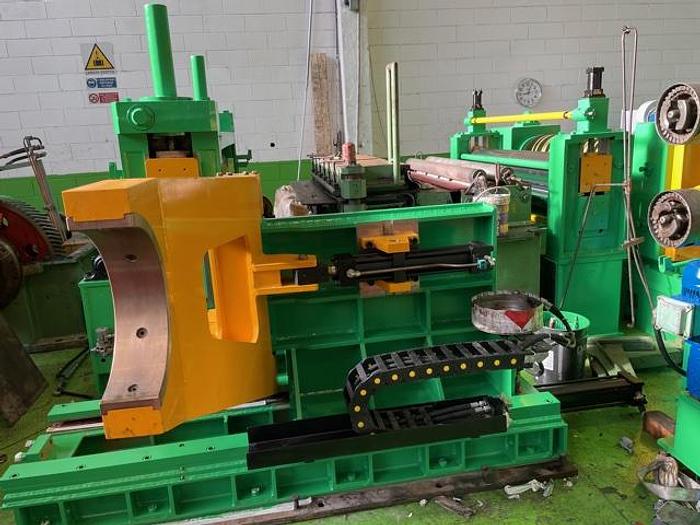

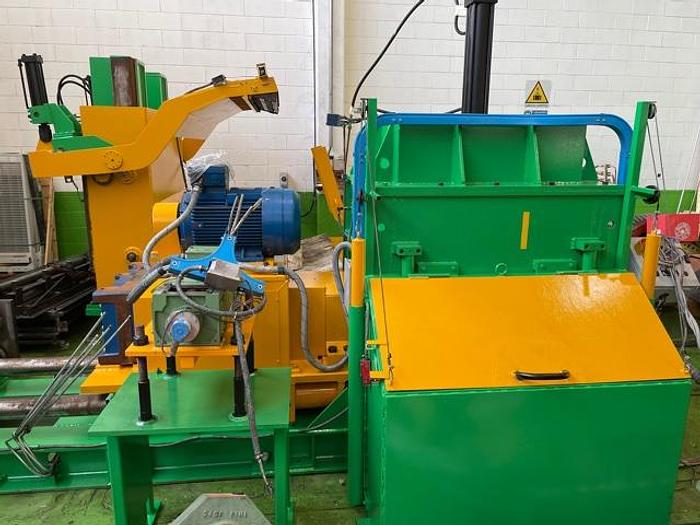

FIMI 1500mm x 6mm Slitting Line (Used) #3970

Line built in the '80s, revamped in 2012

with some new parts and new software as it is specified herebelow

-- for cold rolled, pickled material with:

• textile strength max. 500N / mm2 *
• yield strength max. 360N / mm2

*max. 25 cuts at .4mm & at 1mm material thickness

*max. 20 cuts at 1.0mm material thickness

*max. 10 cuts at 3.0mm material thickness

*max. 8 cuts at 4.0mm material thickness

*max. 7 cuts at 4.0mm material thickness

*max. 6 cuts at 6.0mm material thickness

Minimum material thickness .4mm

Minimum coil width 250mm

Coil max. width 30ton

Unwinding: from above

Line speed.:

0-150m / minute

Material threading speed:

10m / minute

Direction: right to left

Entry Coil ID: 508-610-750mm

Exit Coil ID: 508mm

Coil OD: 508mm to 1800mm

400V 50Hz Three-Phase

Aux. 110V 50Hz

Electro-Valves 24V DC

Main DC Motors:

-Slitter 60kW

-Recoiler 54kW

Hydraulics: 120 bar

Hydr. power pack cooling: by air

Pneumatics: 6 bar

Air consumption: about 1/3 m3 per hour

Equipment list

1) Coil loading cradle

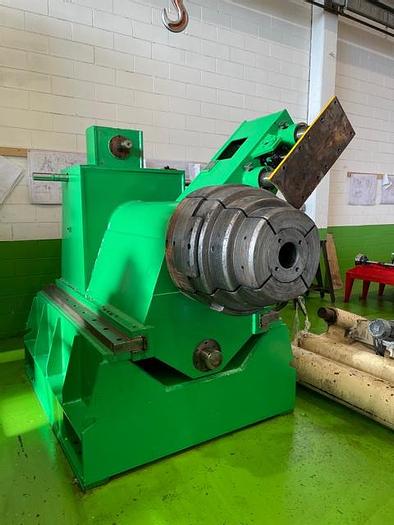

2) Double-mandrel uncoiler

3) Pinch rolls and straightener, with coil opening table and crop shear

4) Centering station group

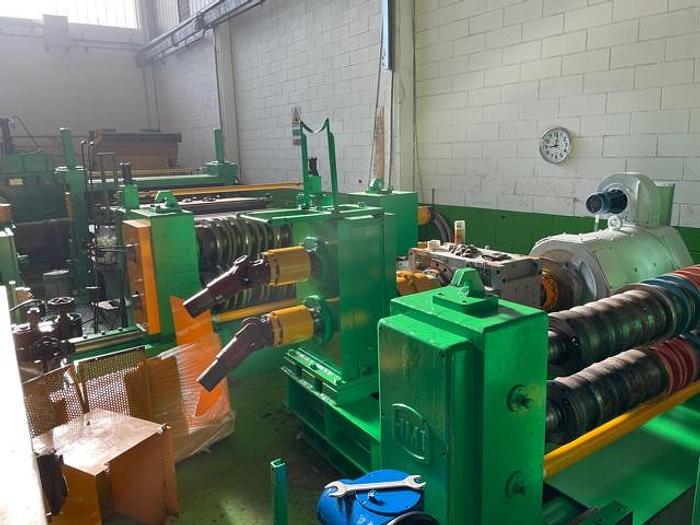

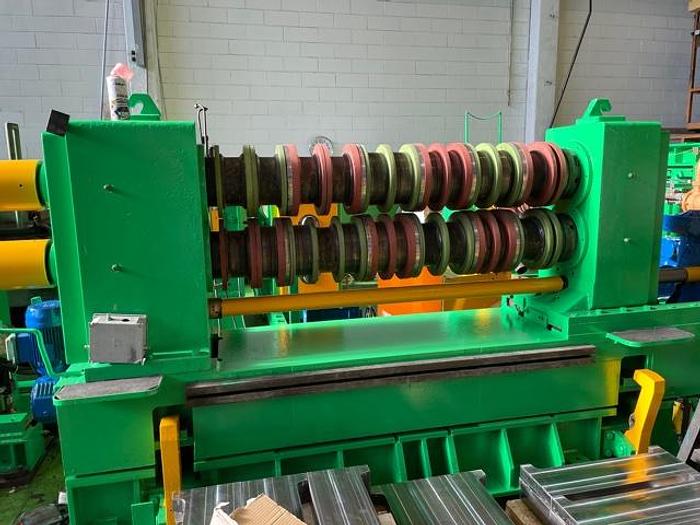

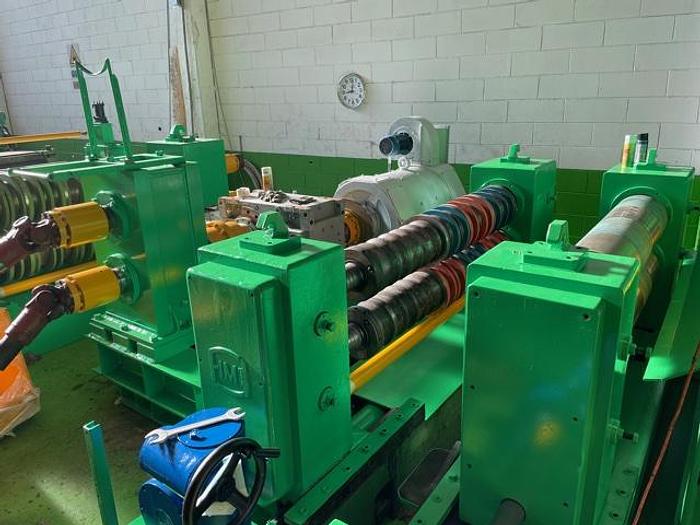

5) DC motor driven slitter heads with eccentric bushings:

• 1 head with shaft Ø180mm (280mm knives)
• 1 head with shaft Ø240mm (400mm knives)

(the cardans are new)

lift-off type heads ^ with hydraulic clamping

5.1) option: two more heads with shaft Ø180 are also available with an extra-charge

6) Complete set of knives, rubbers and spacers set for the above slitter heads

7) Scrap winder

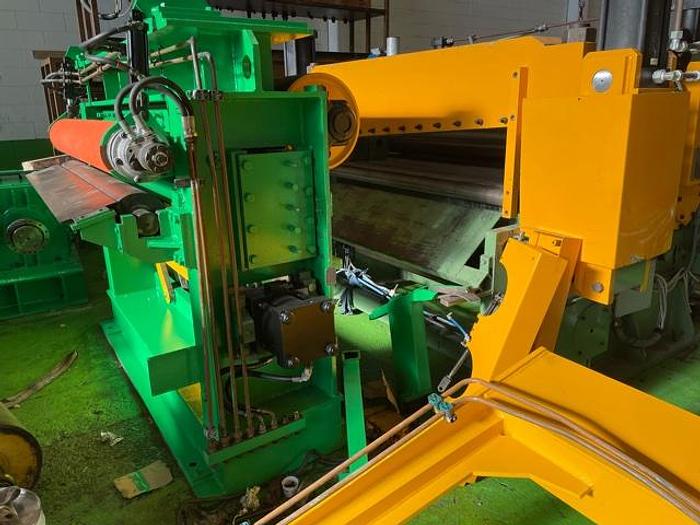

8) Burr planishing press, saddle with rolls and scrap table (the scrap table is new)

9) Braking group with felt tension pad, 3 rolls and exit shear

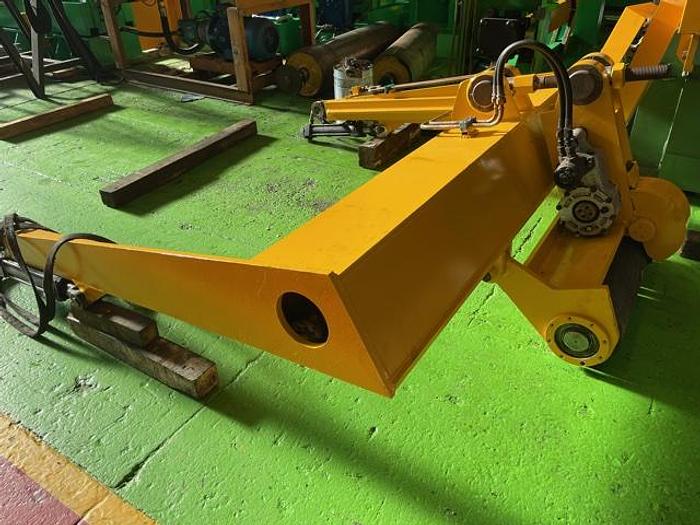

10) Static recoiler with ejection plate, separator-holder arm and frontal support

10.1) Coil off-loading car with strip hold-down

11) Slit coil off-loading four arm turnstile new

12) Hydraulics and Pneumatics

13) Hydraulic power pack

14) Electric equipment on board of machines

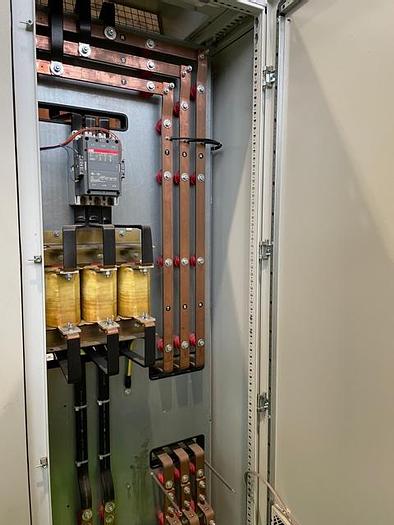

15) Electrics and Electronics equipment (PLC: Siemens S7-300), existing 2012 ABB drives (the software is new)

16) Technical literature:

-Electrical diagrams;

-Line layout drawing.

-
