BARBERO-F&P 2000x10mm Slitting Line (Used) #3797

(See Attach., at the bottom of the page)

MATERIAL: CARBON STEEL

MATERIAL THICKNESS: 2mm to 10mm

COIL MAX. WIDTH: 2000mm

DECOILER CAPACITY: 30ton

ENTRY COIL I.D.: 508/610/750mm

ENTRY COIL MAX. O.D.: 1960mm

DECOILING: FROM TOP

RECOILER CAPACITY: 30ton

EXIT COIL I.D.: 508/610mm

EXIT COIL MAX. O.D.: 1920mm

RECOILING: FROM TOP

LINE MAX. SPEED: 150m / minute

SLITTER SHAFT DIA.: 280mm

LINE DIRECTION: Right to Left

EQUIPMENT & TOOLING LIST

• COIL CAR
• DOUBLE EXPANSIBLE-MANDREL DECOILER 30ton
• DRIVEN SNUBBER
• PEELER STATION
• DRIVEN PINCH ROLLS
• STRAIGHTENER
• CROP SHEAR
• SIDE-GUIDE UNIT

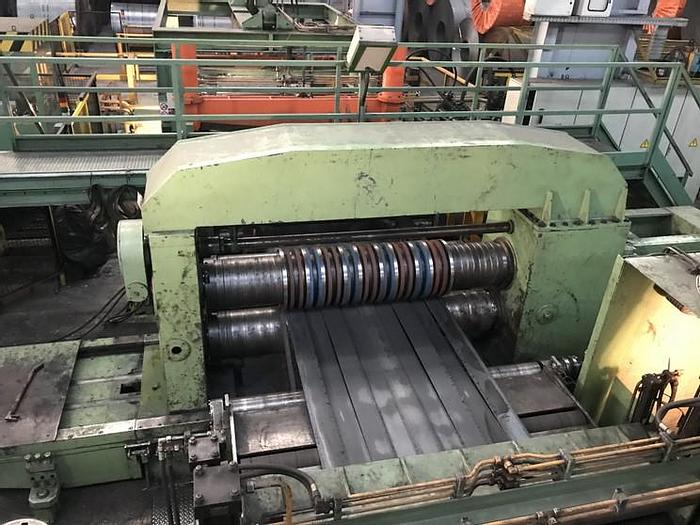

• SLITTER, Ø280mm SHAFTS
• TOOL CHANGE TURRET
• ENTRY RAMP
• PIT BYPASS TABLE
• SCRAP TABLE
• SCRAP BALER
• EXIT RAMP
• DEBURRING ROLLS
• FELT STRIP TENSION PAD
• CROP SHEAR
• DEFLECTOR ROLL
• EXIT TABLE
• RECOILER 30ton
• ^ "THIRD SUPPORT" TO ASSIST RIGIDITY
• SEPARATORS ARM FRAME
• MOTORIZED EXIT TURNSTILE 4- ARM
• ELECTRICAL CABINET
• CONTROL DESKS (3)
• HYDRAULIC POWER PACK

• USED SLITTER TOOLING

-

-
