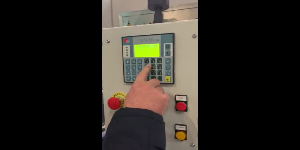

F&P 1000/1500x.5-2mm CTL Lines (New) #3700

Model 90A

1500mm wide

material thickness: .5mm to 2.0mm M.S. (R= 40kg/mm2) / 1.5mm S.S. (AISI 304, 306, 316)

overall dimensions x/y/z excluding feeds: 2500mm x 1900mm x 1300mm

weight excluding feeds: 2750kg

3.0kW

-

Model 90B

1000mm wide

material thickness: .5mm to 2-0mm M.S. (R= 40kg/mm2) / 1.5mm S.S. (AISI 304, 306, 316)

overall dimensions x/y/z excluding feeds: 2200mm x 1400mm x 1300mm

weight excluding feeds: 1900kg

2.2kW

Model 90C

1000mm wide

material thickness: .5mm to 1.25mm M.S. (R= 40kg/mm2) / .8mm S.S. (AISI 304, 306, 316)

overall dimensions x/y/z excluding feeds: 2200mm x 1400mm x 1300mm

weight excluding feeds: 1700kg

2.0kW

Model 90D for insulation cladding makers with: - beading system - 5 head punching system for dia. 3mm holes

1000mm wide

material thickness: .5mm to 1.25mm M.S. (R= 40kg/mm2) / .8mm S.S. (AISI 304, 306, 316) -- and resp., max. .8/.6mm at beading and punching

overall dimensions x/y/z excluding feeds: 2500mm x 1400mm x 1300mm

weight excluding feedes: 1900kg

2.0kW

Stop/start -- 15m / minute, accuracy: +/- .2mm M.S.

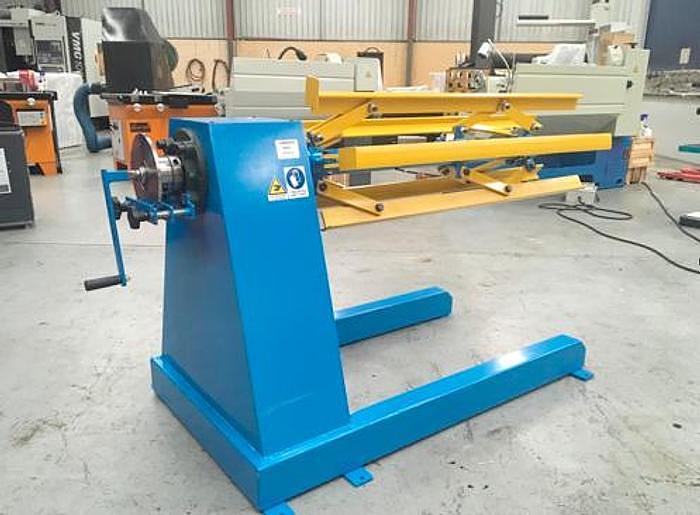

• powered or undriven decoiler/s with max. cap.: 5ton ( see: > Coil Handling Equipment, #3194 & #3230/.1/.3 )
• manually adjustable material entry guides

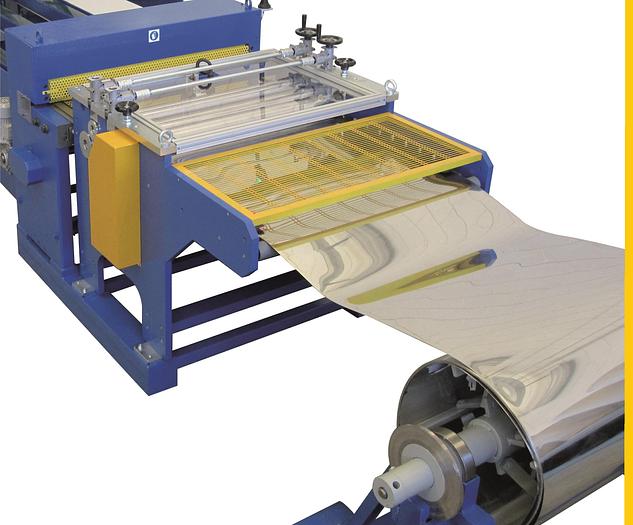

• 5 roll straightener with: dia. 100mm pinch rolls, rubber coated and chromium plated work rolls; transmission by gears; encoder & length measuring wheel
• electric guillotine shear

Options for all Models:

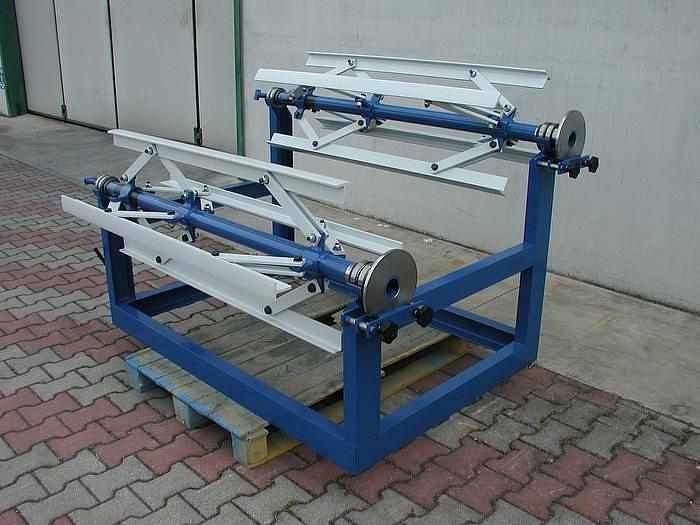

multiple undriven decoilers

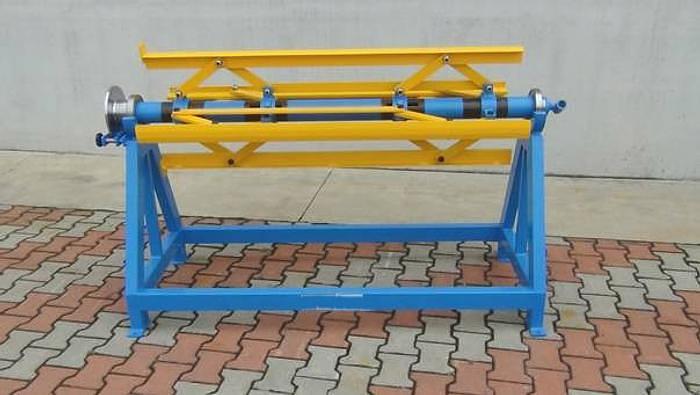

mobile decoiler/s on guides

multi-feeder

ribbing station (added to straightener^)

ink-jet printer

"Standard" electrics: 380V - 50/60Hz - 3phase + heart

--

An example line diagram with two undriven decoilers is in one the Attachs., at the bottom

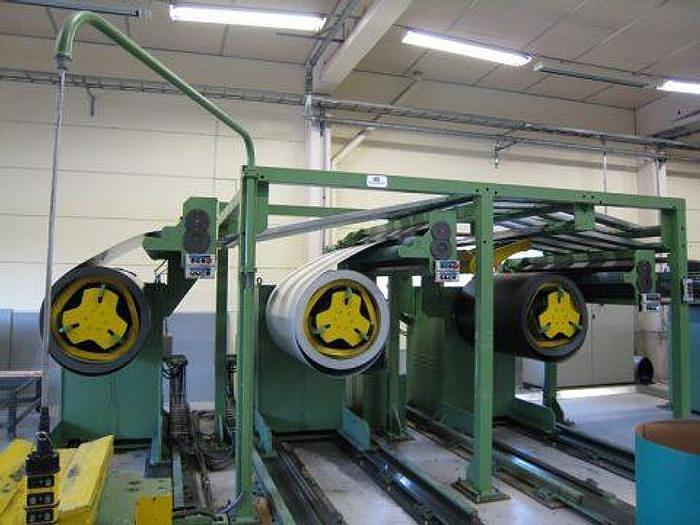

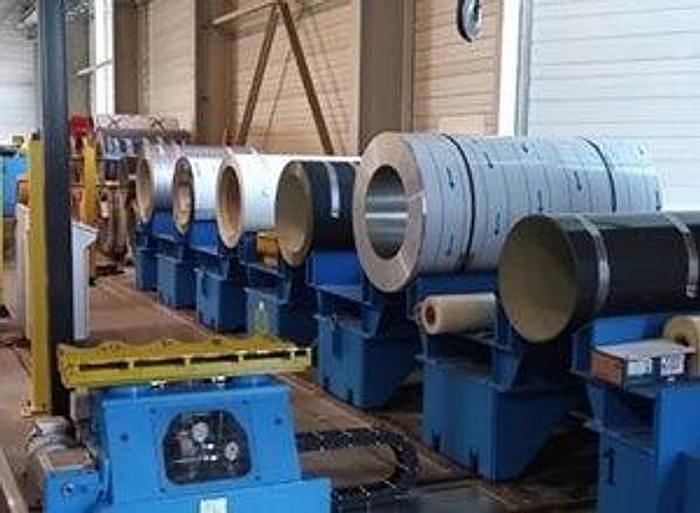

In the other Attach. you can see the line entry section with four undriven decoilers and "multi-feeder"

--
