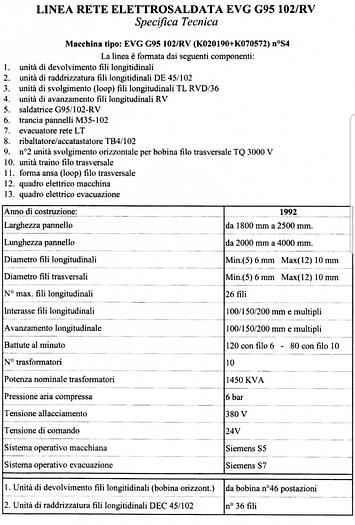

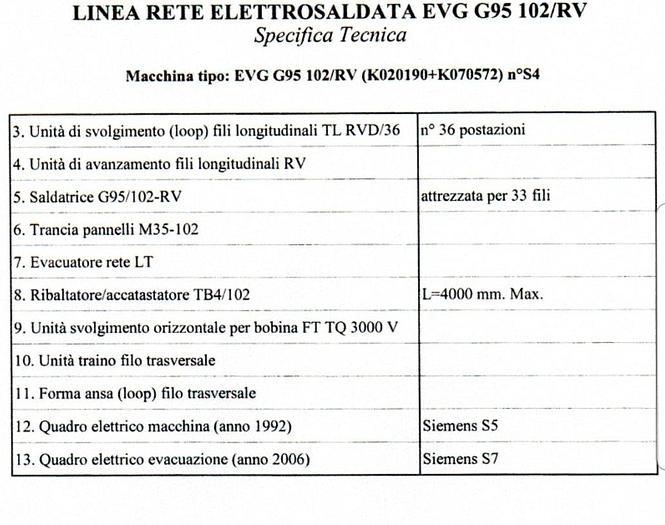

The line consists of:

· Longitudinal wire unwinding unit for 32 coils, capacity 3 Ton, diameter 1250.

· Longitudinal wire straightening unit DE 45/102.

· Unwinding unit (loop) longitudinal threads TL RVD / 36.

· RV longitudinal wire feed unit

· G95 / 102-RV welding machine

· M35-102 hydraulic shear.

· LT / 102 mesh extractor.

· TB4 / 102 tipper / stacker.

· N.2 horizontal unwinding units for transversal wire reel TQ 3000 V.

· Cross wire feeding unit.

· Shape of a cross wire loop.

· Newly built electrical panel.

· N. 4 local command desks.

Year of construction: 1998 the welding head, 2006 all other components.

Panel width from 1500 mm to 2600 mm.

Panel length from 2000 mm to 4250 mm.

Longitudinal wire diameter min. 5 mm max. 10 mm.

Cross wires diameter min. 5 mm max. 10 mm.

N. max. longitudinal weldable wires: 26.

Distance between longitudinal wires 100/150/200 mm and multiples of 50 mm.

Longitudinal feed: multiples of 50.

Maximum beats per minute: 150 (declared by the manufacturer EVG, Austria) and 135 actual beats.

Nominal transformer power: 1450 KVA

Compressed air pressure: minimum 6 bar - maximum 8.5 bar.

Connection voltage: 380 V.

Auxiliary control voltage: 24V.

Machine operating system: new Siemens.

Evacuator operating system: new Siemens.

DEC 45/102 longitudinal wire straightening unit, 36 wires.
