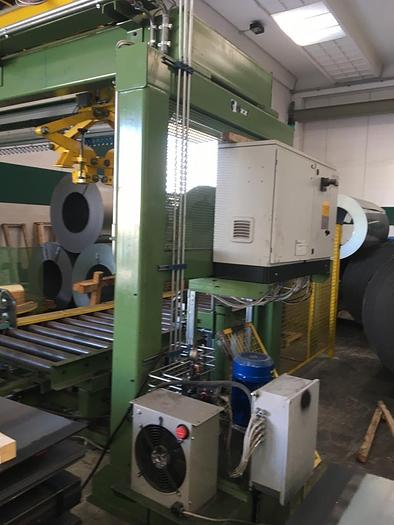

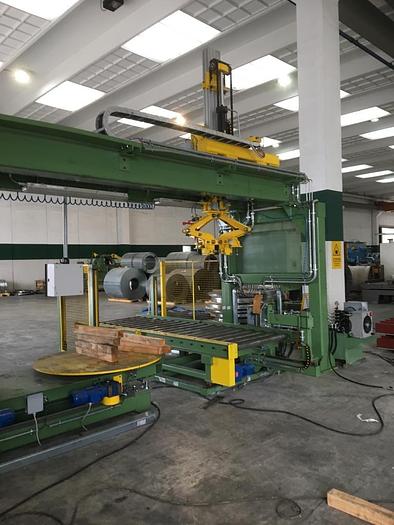

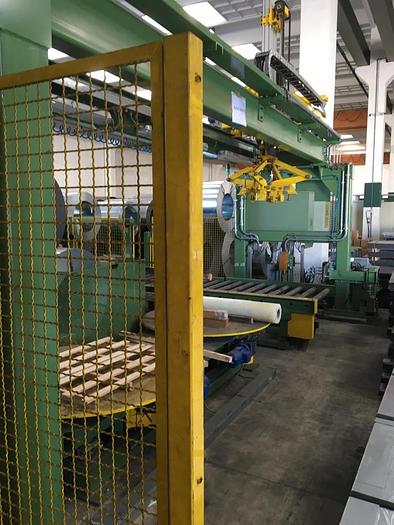

F&P Slit Coil Packaging Line (Used) #3669

Two-Station Line

a) 1 Slit Coil Stack on Entry Roll Table

b/c) ... > 2 Slit Coil Stacks are formed, weighed and strapped

--

Coil OD: 700÷1500mm

Coil ID: 432/508/610mm

Strip Width: 20÷200mm

Slit Coil Stack Height: 700mm (excluding pallet)

Slit Coil Max. Weight: 2000kg

Slit Coil Stack Max. Weight: 5000kg

Equipment List:

• Gripper Cart
• Gantry Type Frame
• Stack-Loading Powered Roll Table (a fork lift is used to load)
• Stack Centering Roll Table with hydraulically-operated strikers

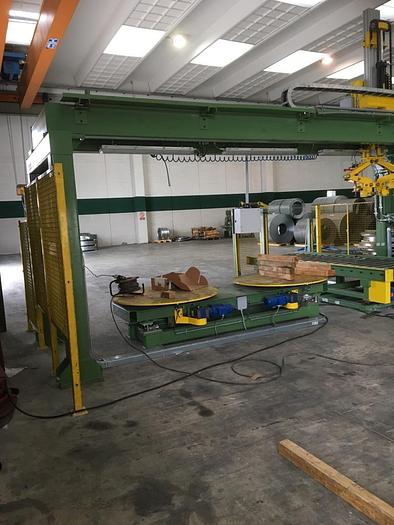

• Station with 2 rotating planes, to stap slit coil stacks on pallets
• Mechanical Gripper
• Electrics & Hydraulics
• Safety Guarding
