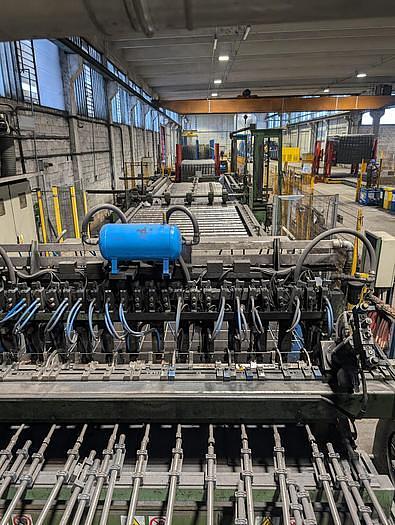

*** Mesh welders #0439

EVG SCHLATTER PROGRESS SCHNELL OTHER BRANDS

ACCORDING TO AVAILABILITY AT THE MOMENT

• BUY / SELL
• OVERHAUL
• SERVICE

A mesh welder is an automated machine designed to join intersecting wires or rods at fixed intervals to create strong, durable mesh panels or rolls. These machines employ a specialized welding technique known as electrical resistance welding, which uses heat and pressure to fuse wires at their intersecting points. The result is a rigid, interconnected grid known as welded mesh. Mesh welders are integral to industries like construction, agriculture, industrial manufacturing, and fencing, where strong, uniform mesh structures are needed for applications ranging from concrete reinforcement to protective barriers.

How a Mesh Welder Works

Mesh welders are typically automated or semi-automated machines that handle the entire process of welding, ensuring accuracy, uniformity, and efficiency. Here’s an overview of the working process:

1. Wire Feeding: The process starts with wire feeding, where two sets of wires—one arranged longitudinally and the other laterally—are positioned at right angles. These wires are fed into the machine from spools or rolls.
2. Alignment and Positioning: The wires are aligned at fixed intervals, depending on the desired mesh size. Mesh welders can be programmed to set specific spacings, producing different sizes of mesh grids suitable for various applications.
3. Welding: The machine then applies an electrical current and pressure at each intersecting point. The resistance created by this current generates enough heat to weld the wires without melting them completely. This resistance welding technique ensures that the joints are strong and the wires maintain their structure.
4. Cutting and Finishing: After welding, the finished mesh is cut to the required length and either rolled or stacked in sheets, ready for use.

Types of Mesh Welders

Mesh welders come in different configurations depending on their specific purpose. The primary types include:

• Reinforcing Mesh Welders: These produce heavy-duty mesh for concrete reinforcement in construction, with thicker wires and larger mesh sizes.
• Fencing Mesh Welders: These welders produce lighter, smaller-gauge mesh that is often coated with materials like PVC for corrosion resistance, suitable for fencing and enclosures.
• Industrial Mesh Welders: Used for machine guards, partitions, and other industrial applications, producing strong mesh that can withstand heavy use.
• Fine Mesh Welders: Designed to produce smaller, tighter grids for applications that require finer mesh, such as filtration or animal enclosures.

Key Applications of Mesh Welders

Mesh welders serve a range of industries by producing mesh for specific applications:

1. Construction and Concrete Reinforcement: Reinforcement mesh is commonly used in concrete structures such as floors, walls, and foundations to enhance strength and prevent cracking. Welded mesh provides structural support, making it essential for reinforced concrete applications.
2. Agriculture and Fencing: In agriculture, welded mesh is used to create fencing for livestock and crop protection, as well as for animal enclosures, cages, and greenhouse panels. It provides a secure and durable barrier against external threats and weather conditions.
3. Industrial Manufacturing: Industrial applications of welded mesh include machine guards, barriers, storage racks, and partitions. The mesh is strong enough to protect machinery and personnel, creating safer and more organized workspaces in manufacturing facilities.

-
