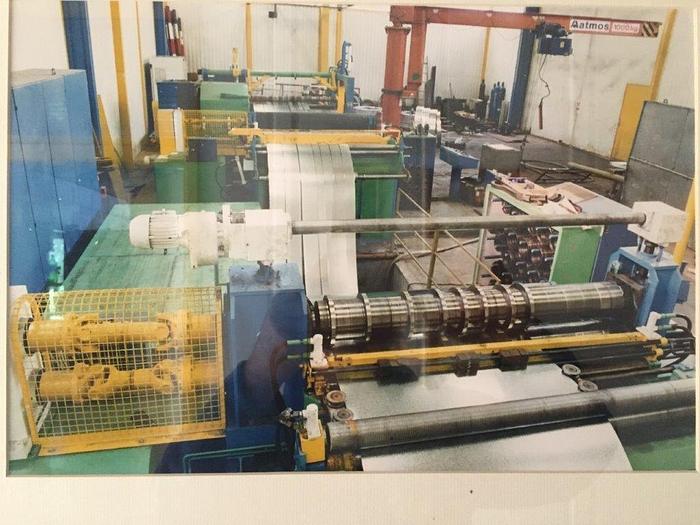

BÖHLER + OTHERS 1500mm x .5-2.5mm Slitting Line #0412

WAREHOUSED

1. LINE BASIC DATA

Speed 0 - 80 m/min.

Working direction left to right

Space requirement (line footprint) approx. 18 x 6 m

Total weight approx. 25 t

2. COMPONENTS DATA

• Coil car

Type: integrated

Loading capacity approx. 15 t

Drive hydraulic

• Decoiler

Mandrel dia. (with segments) 508/610 mm

Expansion hydraulic

Pinch roll free rotated

Hold down device hydraulic

Mandrel support hydraulic

Drive 15 kW

• Strip centering

Adjustment: manual

• Looping pit equipment

Depth of looping pit 2 m

• Crossing table

Adjustment fix

Drive 1,5 kW

• Slitter with interchangeable stands: 1

Blade shaft dia.150 mm

Blade I / O Dia. 150/250 mm

Adjustment of blade shafts: mechanical

Adjustment loose side / operator¡¦s side manual

Driving power 15 kW

• Scrap winder (bundle) / Hacker

No. of bundle winder 1

No. of hackers 2

Shifting movement drive side hydraulic

• Looping pit equipment – Outlet

Depth of looping pit 5 m

• Crossing table

Adjustment fix

Drive manual

• Felt brake

Adjustment: hydraulic

No. of segments 1

Rubbing material felt

• Pinch rolls unit

Adjustment of pinch rolls hydraulic

Pinch rolls – Ø 250 mm

• Recoiler

Mandrel - Ø 508 mm

Expansion/clamping hydraulic

Separating arm hydraulic

Stripper plate hydraulic

Mandrel support hydraulic

Driving power 22 kW

• Coil off-loading car

Type: integrated

Loading capacity approx. 15 t

Drive: hydraulic

-
