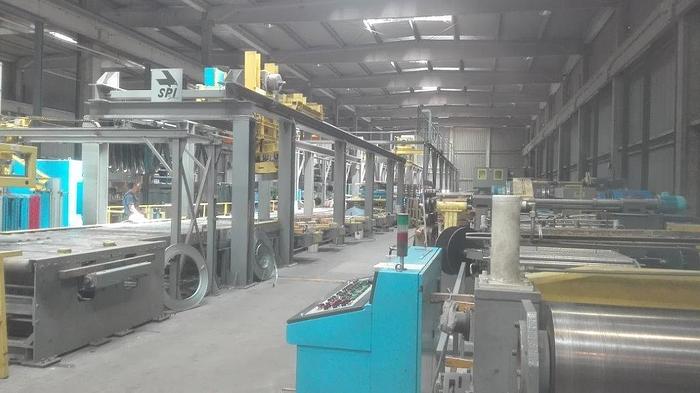

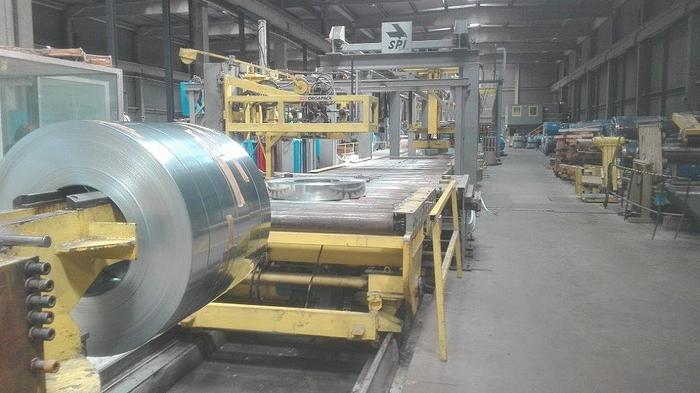

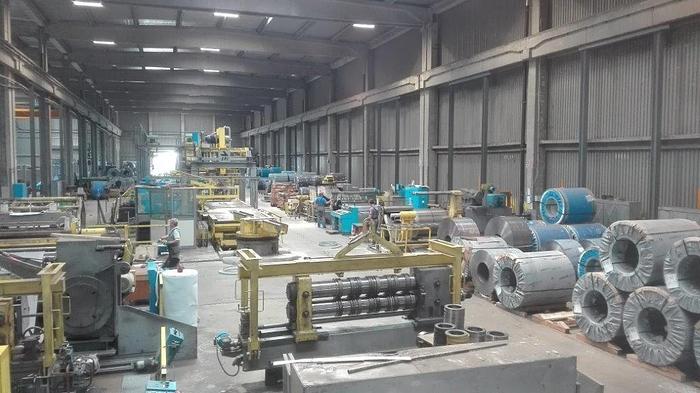

SPI 30 Coil/Hour Slit Coil Packaging Line #0413

Year when built: 1997

Upgraded: 2007

TECHNICAL DATA (CAPACITIES)

Working width of the line 2.000 mm

Packaging capacity 30 coils/hour

Height of each coils (width of strip) max. 850 mm

Outer dia. of the slitted coil max. 2.000 mm

Inner dia. of the slitted coil 520 mm

Weight of the slitted coil max. 5 t

Number of pallet locations 7

Pallets dimensions 1200×1200 mm

Packaging height on pallet max 1.200 mm

TECHNICAL DATA OF PACKAGING LINE

1. BASIC DATA

Direction of packaging right to left

Required space (line footprint) ca. 30 m × 8 m

Total weight of equipment ca. 55 t

2. DATA OF COMPONENTS

 Disposal-receiving carousel

Technical concept 4-console swivel cross

Rotating 360°

No. of disposal-receiving consoles 4

Carrying capacity ca. 100 t

Capacity of each console ca. 25 t

Drive for rotation EMG 7,5 kW/AC

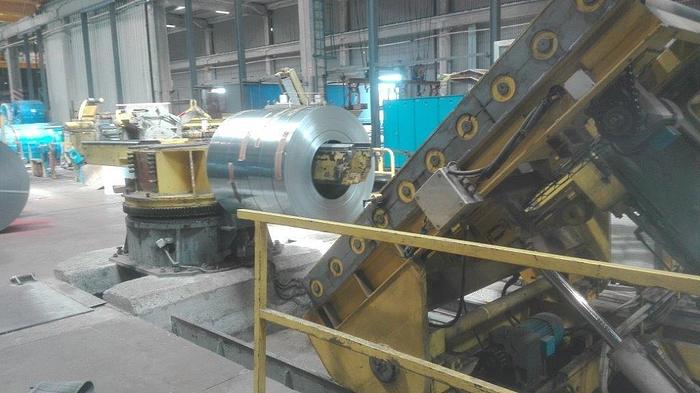

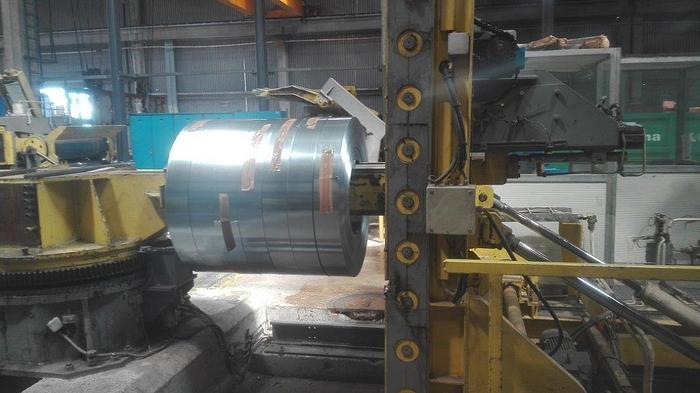

 Receiving turner

Technical concept turning console

Turning angle 90°

Drive for turning hydraulic

Carrying capacity ca. 5 t

Dimensions of the tread rollers frame 2.200 × 2.500 mm

Dia. of rolling conveyor rollers 180 mm

Uptake concept of coils pickup pin

Drive of pickup pin hydraulic

Moving of the swivel console channel-track

Lifting hydraulic

Transmission/drive hydraulic

 Strapping system

Technical concept pneumat. steel strap.

No. of. Strappings 2 / 3 / 4 strappings

Angle of strapping 180°/ 120°/90°

Strapping band 0,6-0,8×19 mm

Strapping concept self-locking

Contact surface for the coil rotary lifting cross

Transporter of the coils rolling track

Drive of rolling track EMG 3,5 kW/AC

 Inserter of separators

Technical concept pneumatic inserter.

No. of inserter 4

Angle of positioning the separators 90°

Material and shape of separators wooden quad

Dimensions of separators 40×40×400 mm

Transport of coils rolling track

Ø of rolling conveyor rollers 180 mm

Drive of roller EMG 3,5 kW/AC

 Libra

Technical concept weighbridge

Capacity max. 5 t

Weighing class 2

Transporter of coils rolling track

Ø of rolling conveyor rollers 180 mm

Drive of roller EMG 3,5 kW/AC

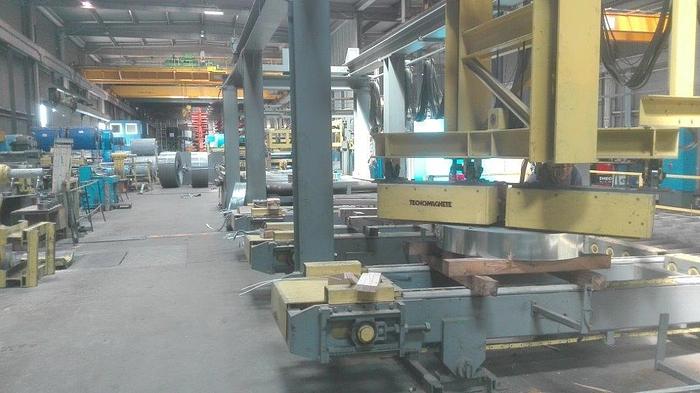

 Bridge Crane (BC)

Technical concept Rigid-leading BC

Capacty 5 t

Load handler (coil) magnet

Lift drive EMG 7,5 kW/AC

Lift speed 30/5 m/min

Drive of horizontal shift EMG 3,5 kW/AC

Speed of the horizontal shift 0 – 75 m/min

 Crane track

Technical concept steel frame constr.

Capacity 5 t

Vertical pillars system 7/2×3,5 HEA 320

Horizontal guide rail system 2×30 HEB 360

Guide rails 40×40 mm

 Coils turner

Technical concept console turner.

Capacity 5 t

Vertical pillars system 7/2×3,5 HEA 320

Horizontal guide rail system 2×30 HEB 360

Guide rails 40×40 mm

 Transverse pallet conveyors

Technical concept chain conveyor

No. of conveyors 7

Angle of lifting 10°

Capacity of conveyor 5 t

Drive of conveyors hydraulic

 Rolling conveyor

Technical concept rolling system

Capacity 5 t

Dimension f rolling conveyor 2×15 m

Ø of conveyor bearing rollers 180 mm

Drive of each conveyor EMG 2,2 kW/AC

 Rotary roller bracket

Technical concept rotary roller bracket

Capacity 5 t

Drive EMG 2,2 kW/AC

Rotating hydraulic

-
