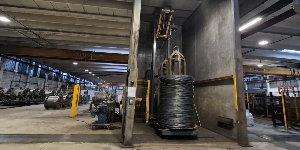

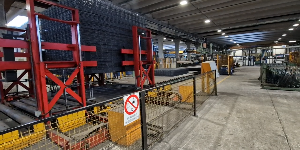

SCHLATTER PG -- Two Lines for sale #0371A/B

Both installed and in service Immediate delivery

FIRST

SCHLATTER PG

1980

• 85 cycles per min
• power automation: Indramat Bosch Rexroth
• management of the General Logics of the machine: Siemens S7-300 (CPU314C-2DP)
• welding transformer power: 12 x 140 KVA
• welding ability: 8 mm + 8 mm every 100 mm
• max number of wires long. - max diam.: 25 wires - diameter 8 mm
• number of welding pistons supplied: 20
• dist. - Long wires: min. 100 mm
• dist. - Cross wires: min. 50 mm
• longitudinal wire diameter: 5 mm - 8 mm
• cross wires diameter: 5 mm - 8 mm
• mesh panel width: min 600 mm not overturned - min 950 mm overturned - "max 2450 + 35x2 overhang (2520 mm)"
• mesh panel length: min 1500 mm - max 8000 mm
• package height: max 600 mm

SECOND

SCHLATTER PG

1980

• 85 cycles per min
• power automation: Baumuller (CMZ for longitudinal wires) - Indramat Bosch Rexroth (CLM for cross wire insertion and crossbar loader / positioner)
• management of the General Logics of the machine: Siemens S7-300 (CPU313C-2DP)
• welding transformer power: 12 x 140 KVA
• welding ability: 8 mm + 8 mm every 100 mm
• max number of wires long. - max diam.: 28 wires - diameter 8 mm
• number of welding pistons supplied: 20
• dist. - Long wires.: min. 100 mm
• dist. - Cross wires: min. 50 mm
• longitudinal wire diameter: 5 mm - 8 mm *only in the case of Ø 8 mm, shear cutting limit n°8 wires max
• cross wires diameter: 5 mm - 8 mm
• mesh panel width: min 600 mm not overturned - min 950 mm overturned - "max 2790 + 20x2 overhang (2830 mm)"
• mesh panel length: min 1500 mm - max 8000 mm
• package height: max 600 mm

^

Upon request, the equipment will be quoted with these EXCLUSIONS:

•       Transport

•       Unloading from the trucks/containers at your site

•       Lubricating oils

•       Safety guarding

•       All civil works, foundation work and foundation bolts

•       All ducts, underground or overhead or fixed to the walls for cables or air

•       Connections (electrical cables) between main system to the electrical cabinet and from the cabinet to machine and control desk

(only the cables interconnecting the various parts of the same machine on board will be supplied)

•       Fume/gas dissipator (if required)

•       All lighting, heating, conditioning systems, warehouse equipment, and general service of the factory

•       All bobbin, spools, reels, spider or carriers

•       All single-tools (like: pliers, cutting, nippers, files etc.)

•       Cost of technicians for installation and start-up:

-- 650 € per day for a single mechanical and electric technician

-- 700 € per day for the electronic technician

--  travel, food and accommodation costas

•       Staff training

-
