F&P 3" ERW Tube & Profile Mill, Nice-Price #0211

11821-22/SR example of a standard mill-configuration

Material:

HR Steel S235-S275, CR Steel DC01-D C04, Galv. DX51-DX54

Maximum Tensile strength 520 MPa

Yield strength min 235 MPa

Thickness: .7mm to 3.0mm

110-400mm wide coils with OD 1000-2000mm and ID 460-550mm

Products:

• Dia. 20mm to 76mm round section tubes
• Profiles: square 30mmx30mm to 60mmx60mm; rect. 20mmx30mm to 40mmx80mm

Lengths: 3m to 6m

Tolerances: Tube OD +/-.1mm [to DIN EN 10305-5(DIN 2395) / DIN 10219]; straightness max. 1mm per-meter; length at max. speed, +/-2mm for 6m long tubes

Mill workspeed max. 130m / minute

Welder: 300kW

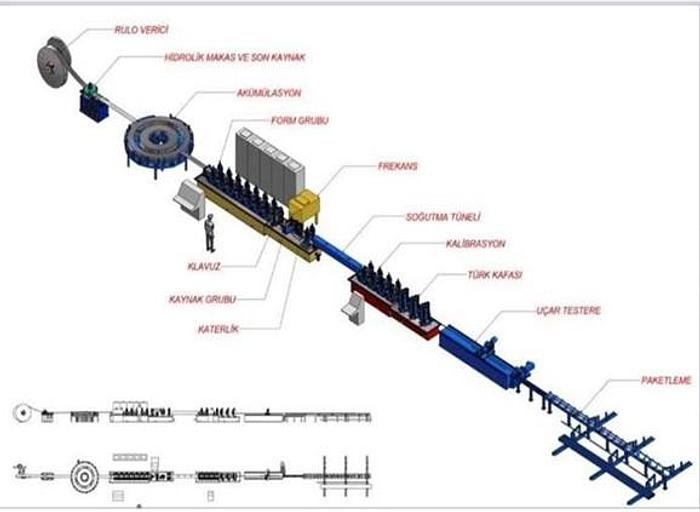

EQUIPMENT LIST

GRUPPO DI ENTRATA / ENTRY SECTION

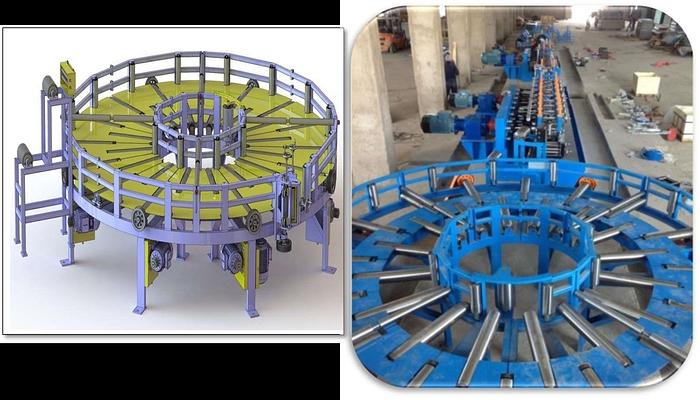

CULLA DI CARICO, SVOLGITORE DOPPIO GIREVOLE / COIL LOADING CAR & 2-HEAD SWIVEL DECOILER

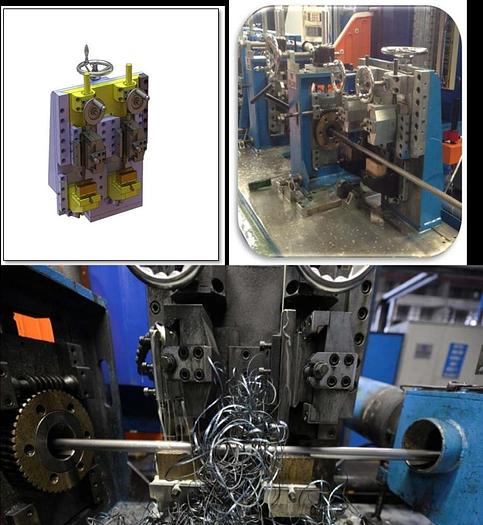

GIUNTURA NASTRO / SHEAR-WELDER

ACCUMULATORE / STRIP ACCUMULATOR

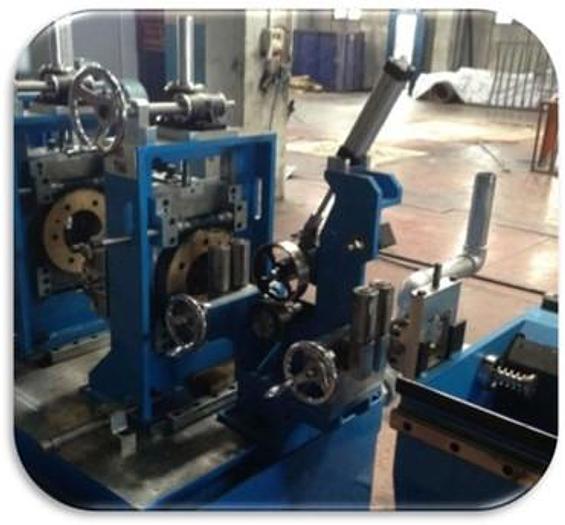

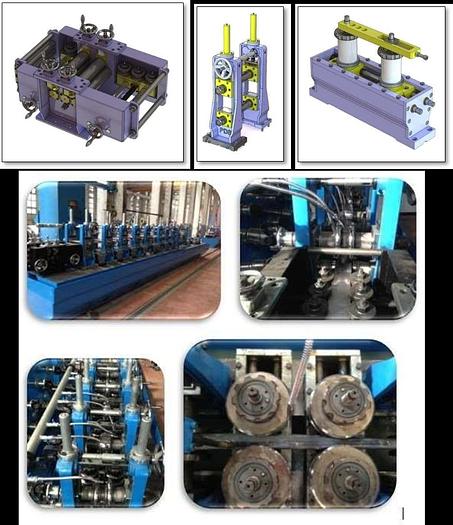

FORMATURA / TUBE FORMING SIZING AND STRAIGHTENING SECTION

RAFTED MACHINE

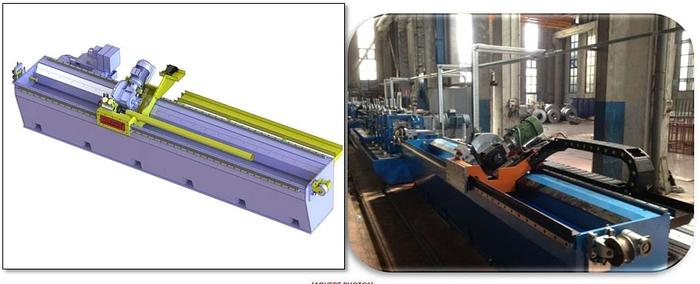

TAGLIO E USCITA / FLYING TUBE-CUTOFF & LINE EXIT SECTION

ALL TOOLING ^

-
