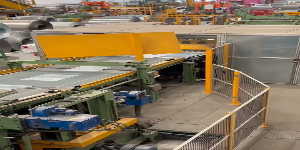

FIMI 1250x.12-.80mm Tinplate Sheeting Line #0111

FIMI 1250x.12-.80mm Tinplate Sheeting Line #0111

orCall +39 393 577 2205

Description




€ 450.000



Installed and in operation



Built: 1982

Revamped: 2008 and 2019


Process materials: tinplate; + also carbon and stainless steel (both raw and annealed)

Sheet dims.: from 340x500mm to 1250x2000mm


Max. coil weight 16ton




Equipment List

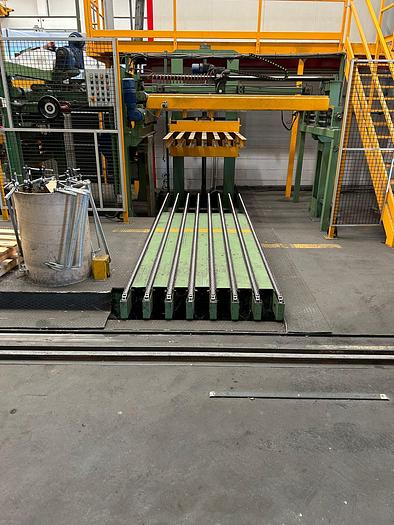

  • Storage ramps for 2 coils

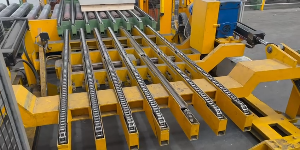

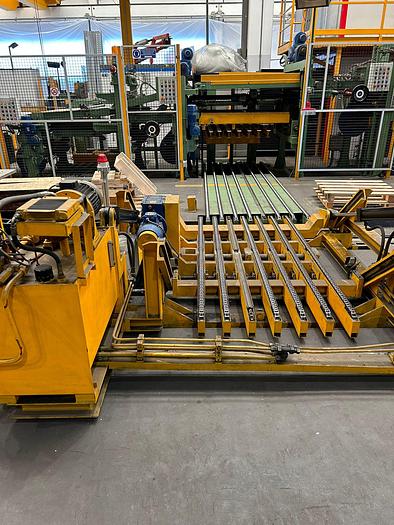

  • Coil loading car
  • Powered decoiler - Ø 400mm and 508mm (with spacers)
  • Entry pinch rolls to leveler
  • Connecting table
  • Roll cassette type leveler with cassettes for .12mm to .40mm and .40mm to .80mm thicknesses
  • Pinch rolls
  • Loop entry & exit saddles
  • Pinch rolls
  • Vertical roll coil centering station
  • Electronic material thickness gauge
  • Rotary shear
  • Brandishing carpet #1
  • Scrap collection box
  • Brandishing carpet #2
  • Connecting table

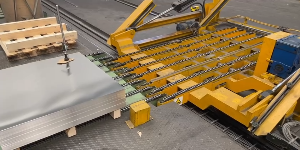

  • 3 sheet stack off-loading shuttles to roll table

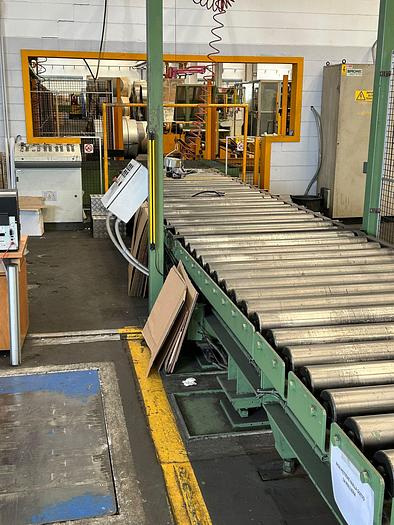

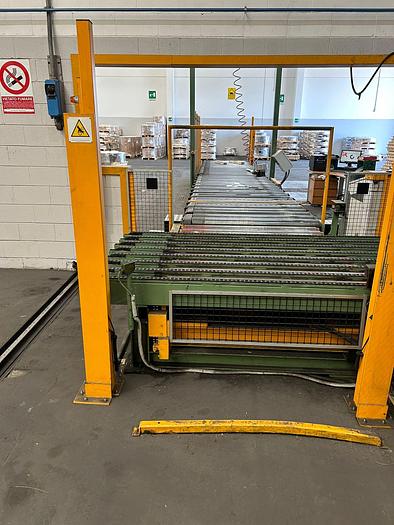

  • Sheet stack evacuation roll table

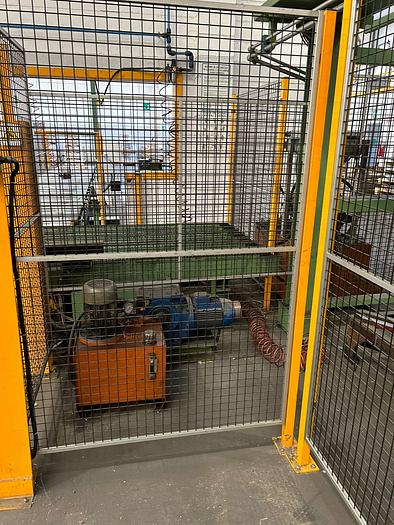

  • Hydraulic power packs
  • Material introduction control panel at line entry
  • Main line control panel
  • Line exit control panel
  • Electrical power cabinets
  • Safety light guarding






-




Specifications

ManufacturerFIMI
Model1250x.12-.80mm Tinplate Sheeting Line #0111
ConditionUsed
Stock Number--
