F&P Coil Coating Line Parts (New) #0073

11825-23/SR Custom Designed Equipment (Example)

< click to enlarge images

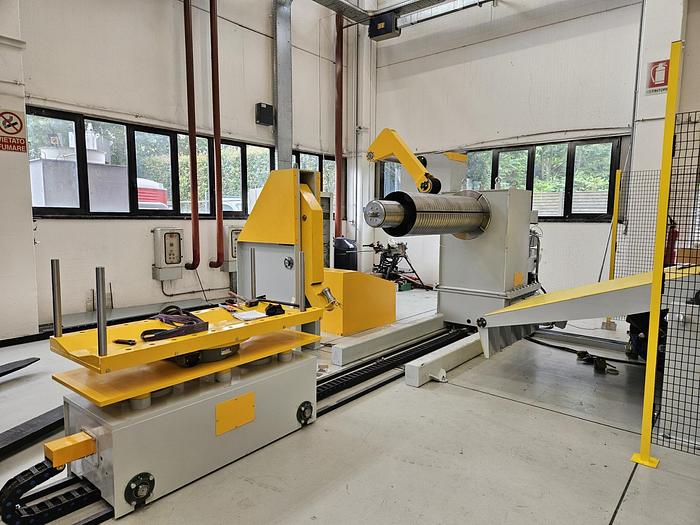

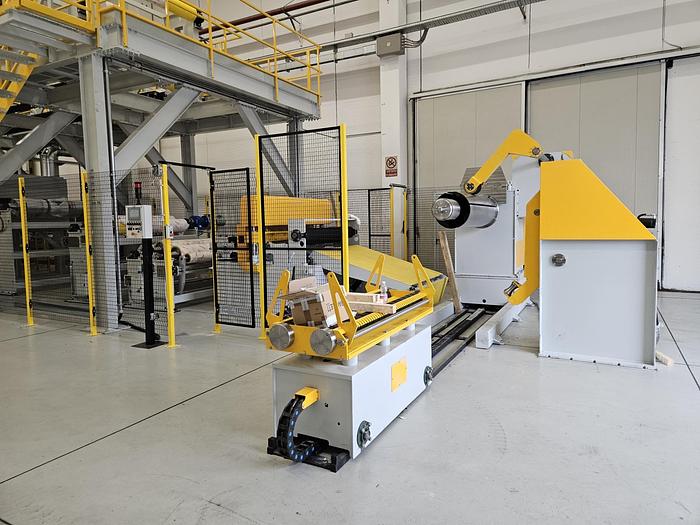

6t Hydr. Coil Loading Car

3000mm horiz. stroke, 500mm vert. stroke

Manually operated car rotation around vertical axis

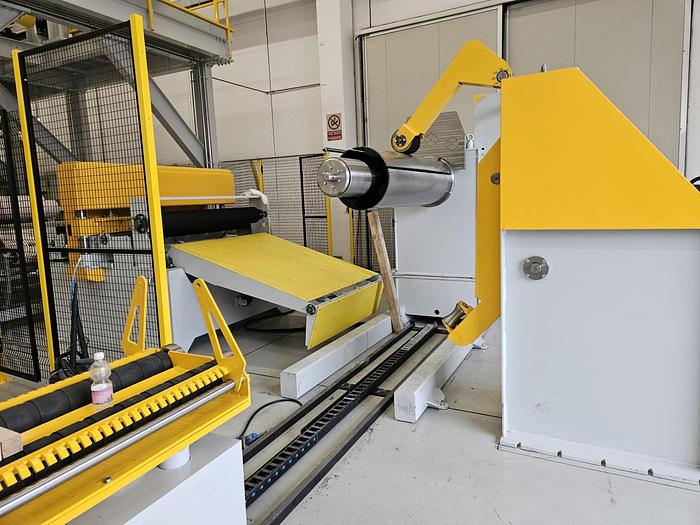

6t Decoiler

450-530mm self-centering +/- 100mm 6kW

Entry Table, Pinch Rolls, Crop Shear

9 Straightening Rolls dia. 120mm / of NC39 tool steel

Exit Pinch Rolls, Crop Shear, Table

6t Recoiler

508mm 18kW

6t Coil Off-Loading Car

3000mm horiz. stroke, 500mm vert. stroke

Material: 500-1500mm x .2-1.0mm

Aluminium Rm= 450 Mpa

Line speed 15m / minute

-
