MARIANI 2050x1.2-6.0mm 4-HI Leveler (Used) #3618

Material max. thickness: 6.0mm (Rm=400 N/mm2)

Material min. thickness: 1.2 mm

Length of Work Rolls: 2200 mm

Number of Work Rolls: 15 / roll dia.: 68.5mm

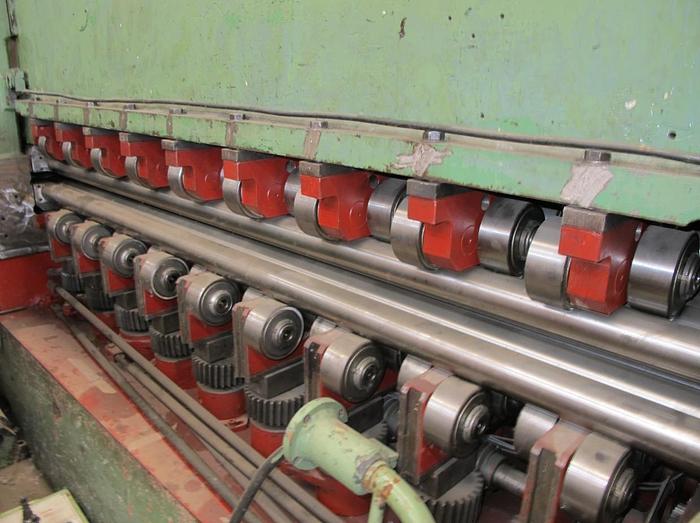

Back-Ups: 9+9 rows

Powered parabolic (concave/convex) adjustment

Upper bridge hoisting by two independent three-phase gerared motors (5.5kW) placed on the machine sides

• position transducers

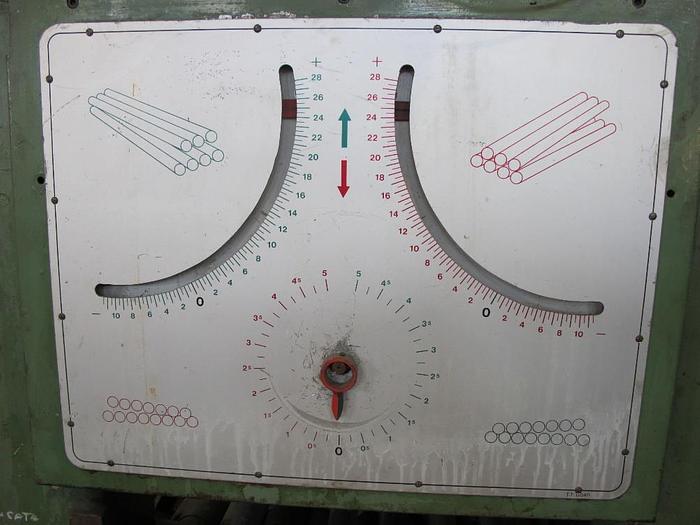

Upper bridge tilting (entry/exit) also powered, visualized on a frontal scale

Main motor power: 75 kW (motor currently missing)

Machine workspeed: 15/22 metres per minute (with gearbox)

Available sparte parts: a full set of Back-Ups, some geared motor pinions, universal joints

--

The machine revamping has included:

• grinding of Work Rolls (hardness not less than 60-62 HRC)
• new Back-Ups

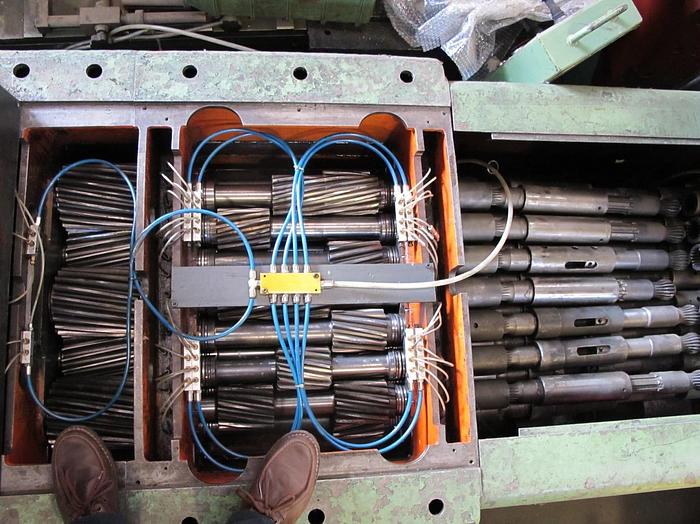

• new lubrication unit, with electric motor-pump for the distributor and joints
• new centralized lubrication system for the work rolls
• remaking or completion of the aboard-electrics (they would be wired on branch boxes)
• new roll guarding cases (at entry/exit and for upper bridge)
• main motor and stand-by brake
• checking and taking up of upper bridge clearances
• re-painting

-
