F&P 2200mm x .25-3.0mm Alu. CTL Line #0022

F&P 2200mm x .25-3.0mm Alu. CTL Line #0022

orCall +39 393 577 2205

Description




Flying Shear Type

40m / minute

25ton coils (ID 500mm, max. OD 1950mm, minimum width 1000mm)


Product: minimum size 500x500mm, maximum size 2200x4000mm; max. stack weight 5ton



Yield strength: Max 300 N/mm2


Operating Voltage 380V / 50Hz + Ground

Auxiliary Voltage 220V / 50Hz

Hydraulics 100-105 Bars

Pneumatics 6 Bars

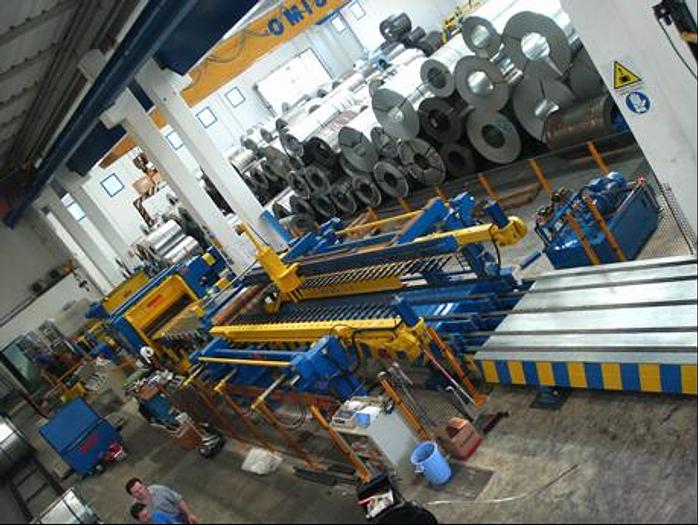

Composition of the line:





1. ENTRY COIL CAR, FLOOR PIT TYPE



2. UNCOILER, CANTILEVER TYPE



3. PINCH-ROLLS WITH MATERIAL THREADING TABLE

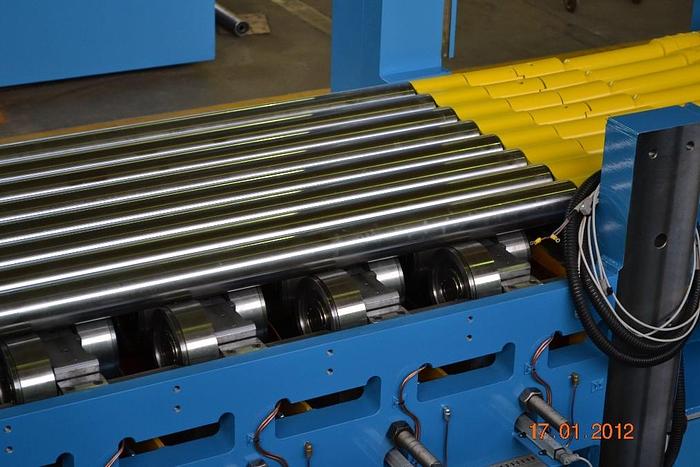

4. 6-HI PRECISION LEVELER 19 Roll with roll diameter 45mm 200 kW AC


4.1 COIL EDGE TRIMMER



5. FLYING SHEAR



6. INSPECTION CONVEYOR BELT 2.500mm



7. 2nd RUN-OUT CONVEYOR BELT WITH CROP TROLLEY



8. PART EXTRACTION PINCH-ROLLS DESIGNED FOR HIGH SPEED.



9. DOUBLE-BOX SHEET STACKER 1.000+4.000mm



10. PRODUCT DISCHARGE CATENARY 4.000mm








Show All

Specifications

ManufacturerF&P
Model2200mm x .25-3.0mm Alu. CTL Line #0022
ConditionNew
