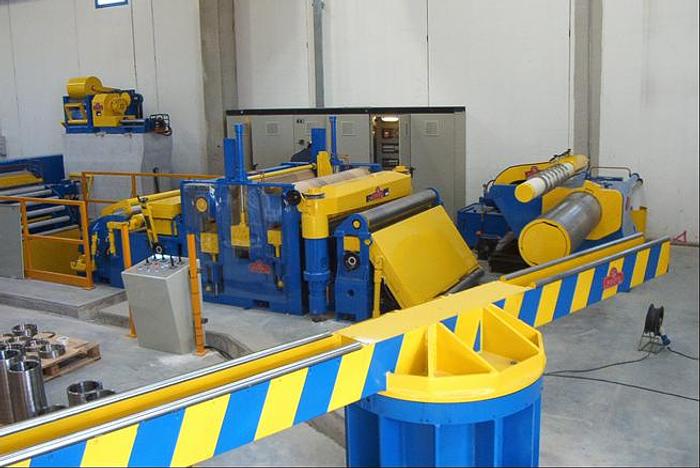

F&P 2200mm x .15-3.0mm Alu. Slitting Line #0021

EXAMPLE

200m / minute Line

30ton coils (ID 470-680mm at entry, 508mm and 610mm at exit; max. OD 2500mm)

for Aluminium Alloys: 1xxx, 3xxx, 5xxx, 8xxx

Operating Voltage 380V / 50Hz / 3-Phase

Auxiliary Voltage 110V / 50Hz

Hydraulics 120 Bars

Pneumatics 6 Bars

                      THICKNESS                           MAX. NO. OF CUTS                       SPEED

                           3mm                                        10                                 120 m/min

                           2mm                                        12                                 200 m/min

                        1.5mm .                                       15                                 200 m/min

                           1mm                                        20                                 200 m/min

                       .5 mm.                                       20                                 200 m/min

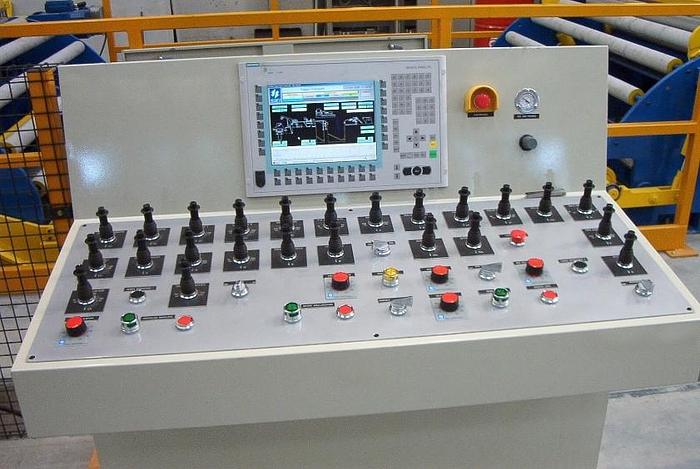

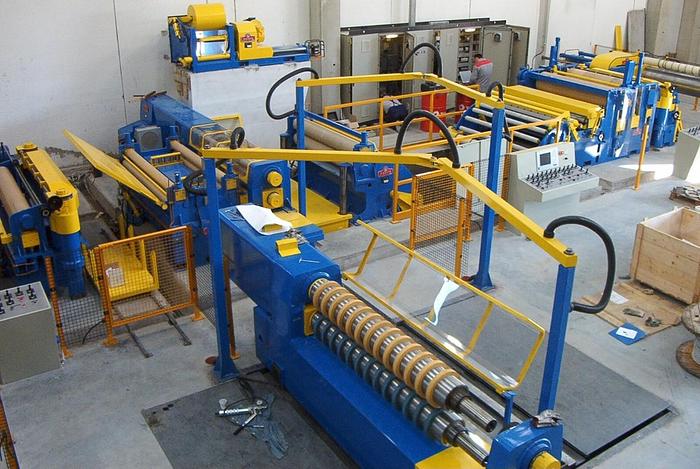

Composition of the line:

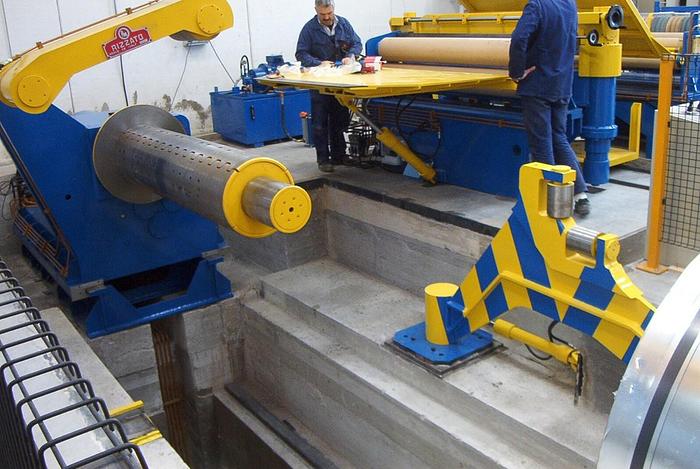

1.    Hydraulic entry coil car, floor pit type

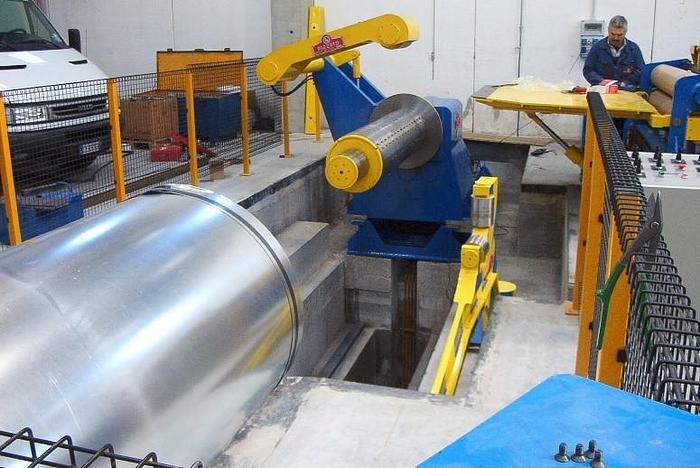

2.    Self-centering uncoiler, expanding mandrel

3.    Pinch-rolls and hydraulic crop shear

4.    Edge guide

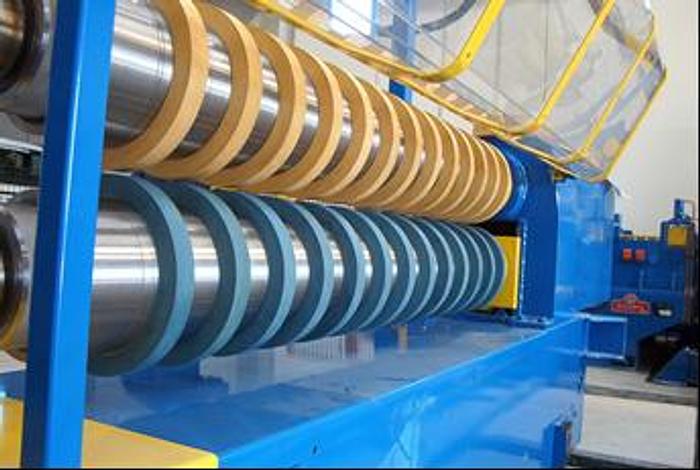

5.    Slitter predisposed for 2nd head

6.     2 scrap winders

7.    Loop pit with hydraulic table

8.    Tension pas, felt type, and deburring rolls

9.    Recoiler, expanding mandrel

10.  Turnstile with 2 arms
