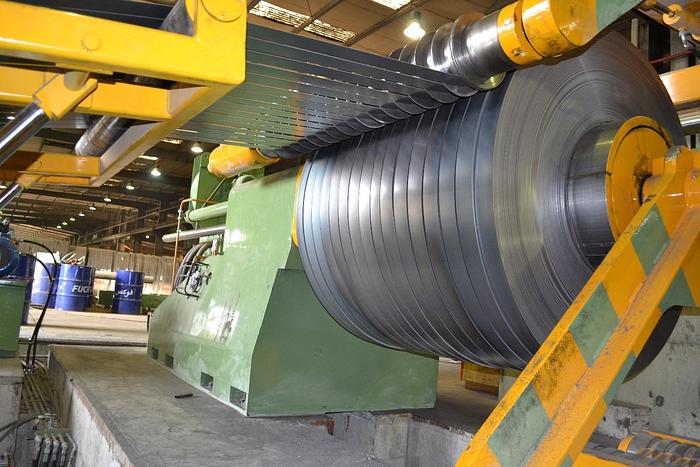

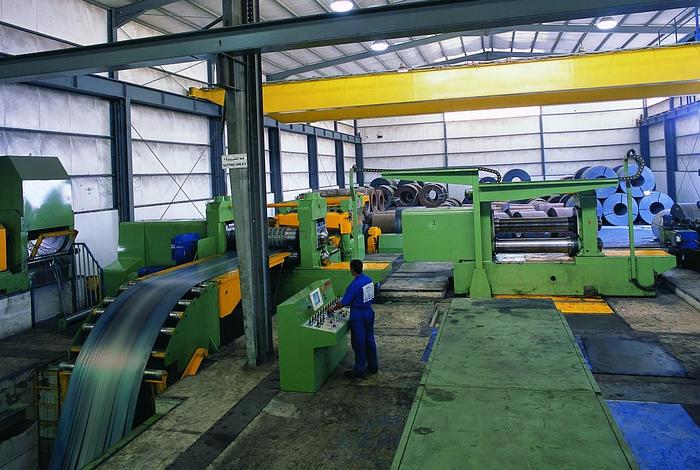

F&P Slitting Line, 2050x6mm - 32ton - 120m/min. #0019

EXAMPLE

Max. material thickness: 6mm

Min. material thickness: .8mm

Max. coil width: 2050mm

Max. coil weight 32 ton

Coil I.D.: 470-850mm

Coil O.D.: 2200mm

Yield strength: 520 MPa

ENTRY COIL CAR, WITH FLOOR PIT

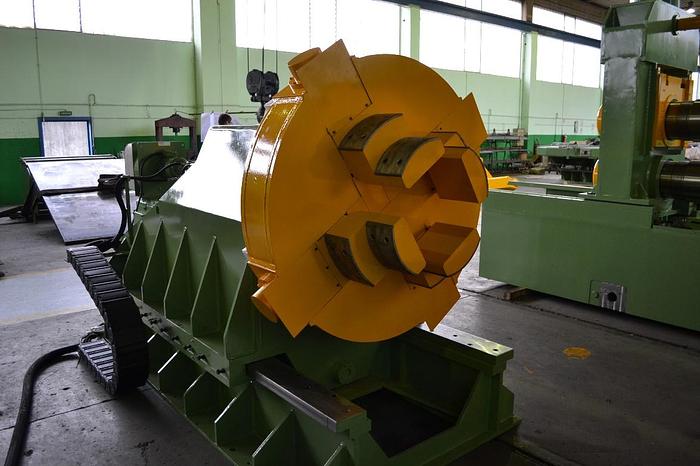

DOUBLE MANDREL UNCOILER, SELF-CENTERING

POWERED HOLD DOWN ROLL

COIL THREADING TABLE

AUTOMATIC EDGE CONTRO

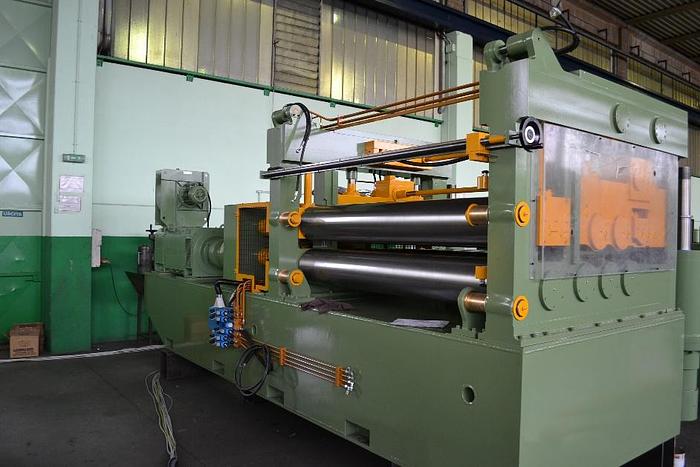

PINCH ROLLS AND STRAIGHTENER

ENTRY CROP SHEAR

CENTERING SYSTEM

DUAL HEAD SLITTER

PASS-OUT TABLE WITH LOOP

4-HI TENSION STAND, PATENTED “TENSIONED COIL”

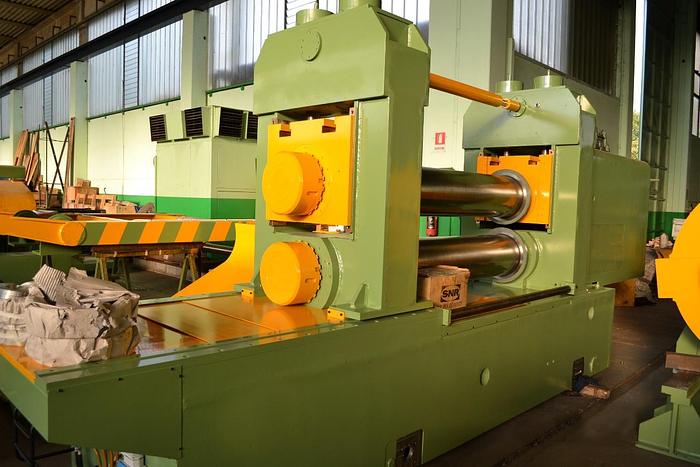

PINCH ROLLS

EXIT CROP SHEAR IN EXIT

DEBURRING ROLL

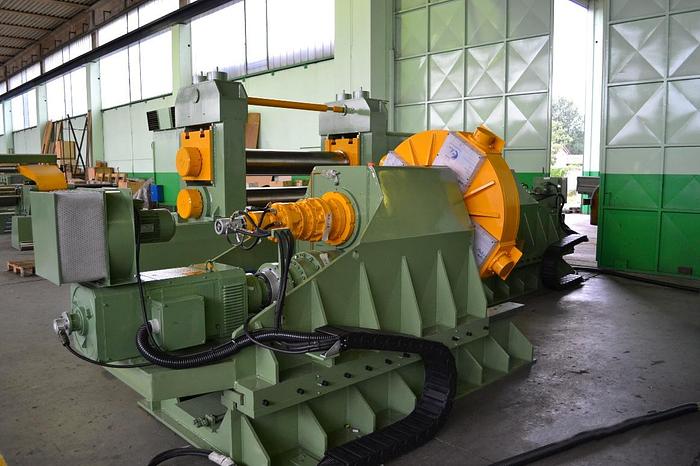

RECOILER, SELF-CENTERING WITH SEPARATOR OVERARM AND EJECTOR PLATE

EXIT COIL CAR, WITH FLOOR PIT

-
