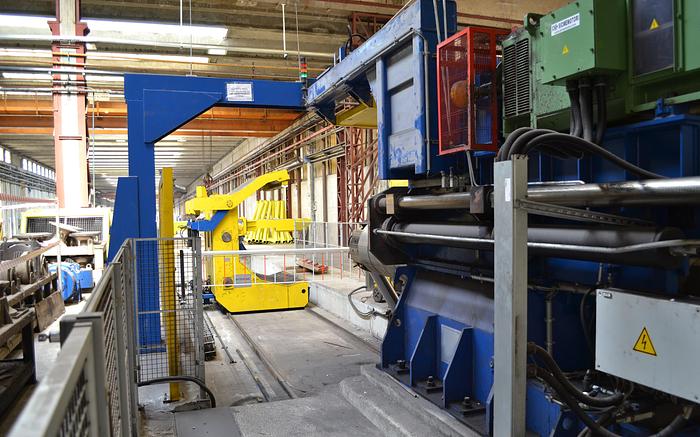

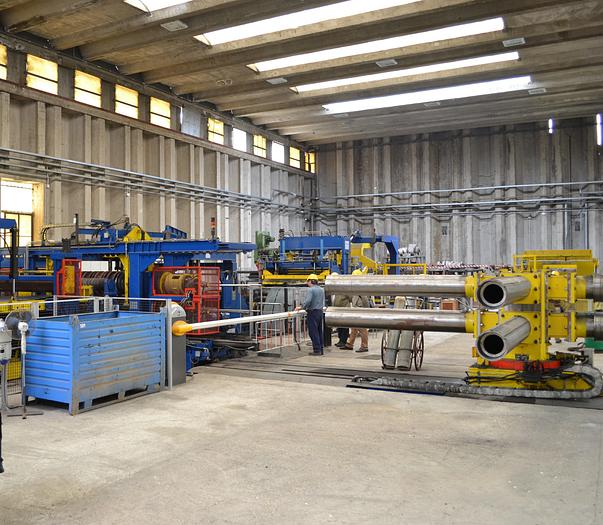

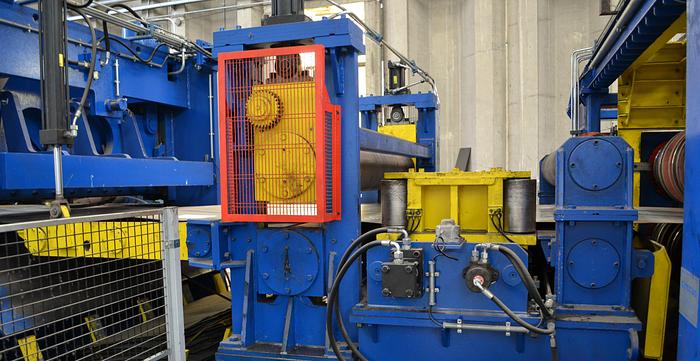

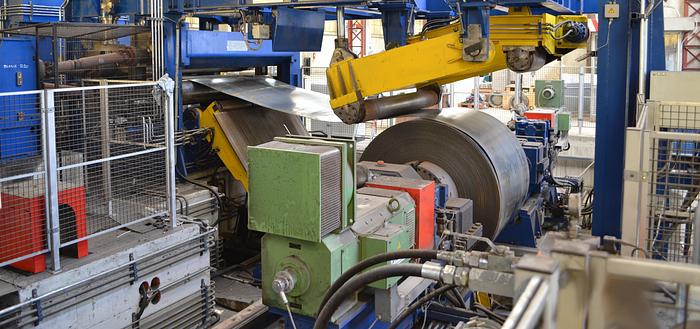

F&P Slitting Line, 2050x16mm -36ton -120m/min. #0015

11907-23/SP/SR

EXAMPLE OF A "TYPICAL" COIL SERVICE CENTER LINE OF OUR OWN DESIGN WITH TOOL CHANGER

For a line with these precise characteristics we can make you an immediate offer

Hot Rolled Steel

Tensile strength h max 400-860 N/mm²

Yield strength max 235-500 N/mm²

Coil Width 1000÷2.000mm

Material Thickness 5÷16mm

Coil Weight max 36ton

Coil Internal diameter 650-900mm

Coil External diameter 1.400-2.300mm

120m / min. with 5-8mm material thickness

60m / min. with 8-16mm material thickness

1.3.1 TILTER

1.3.2 ENTRY COIL CAR “1”

1.3.3 ENTRY COIL CAR “2”

1.3.4 THREE COIL STORAGE STATION

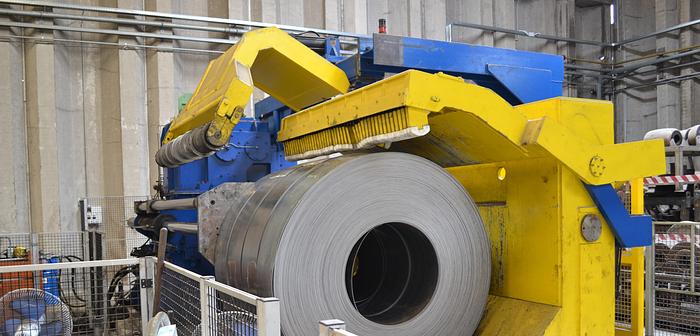

1.3.5 UNCOILER 2 PZ. 172kW

1.3.7 ENTRY FRAME

1.3.8 PEELER STATION

1.3.9 PINCH ROLLS

1.3.10 STRAIGHTENER 78kW

1.3.11 SCRAP SHEAR

1.3.12 BLANK REMOVER

1.3.13 GUIDES AND FEEDING ROLLS 22 kW

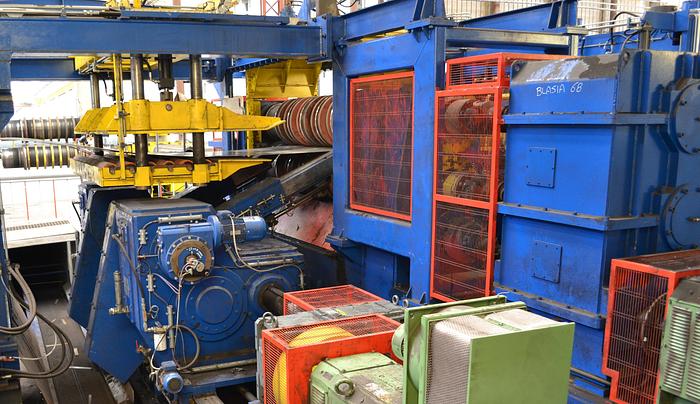

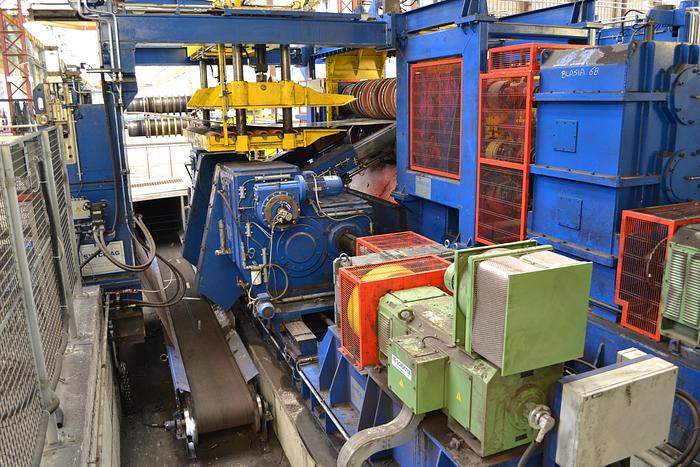

1.3.14 SLITTER 319kW

1.3.14.1 SECOND HEAD OF SLITTER

1.3.15 GUIDING ROLLS TABLE

1.3.16 SCRAP CHOPPER 232kW

1.3.16.1 SCRAP CONVEYOR

1.3.17 MOBILE TENSION UNIT

1.3.18 MOBILE CARRIER

1.3.19 SEPARATOR SHAFTS

1.3.20 FELT PAD

1.3.21 PINCH ROLLS

1.3.22 SCRAP SHEAR

1.3.22.1 BLANK REMOVER.

1.3.23 TENSIONING ROLLS 143 kW

1.3.24 DEFLECTOR ROLL

1.3.25 THREADING TABLE

1.3.25.1 CLOSING PIT-TILTING TABLES

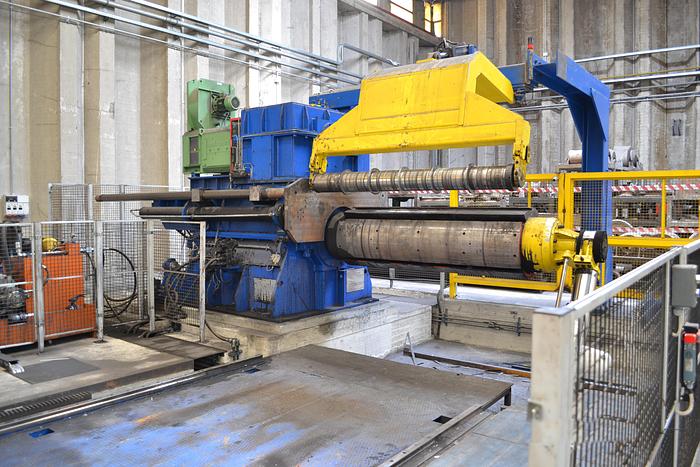

1.3.26 CANTILEVER-MANDREL TYPE RECOILER 432kW

1.3.26.1 PULL-OUT FRAME

1.3.27 COIL UNLOADING COIL

1.3.28 STRAPPING SYSTEM AREA

1.3.29 COIL WEIGHING SYSTEM

1.3.30 SLITTER TOOLING

1.3.31 LINE SAFETY PERIMETRAL GUARDS

1.3.32 HYDRAULIC AND PNEUMATIC EQUIPMENT 111kW

1.3.33 ELECTRICAL EQUIPMENT 20kW

Line capacity

with R=400 MPa

at 5mm 16 cuts

at 6 14

at 7 14

at 8 12

at 10 10

at 12 10

at 14 8

at 16 6

-

-
