F&P Slitting Line, 2000x4mm - 200m/minute #0011.de

11671-21/SR

EXAMPLE OF A "TYPICAL" COIL SERVICE CENTER LINE OF OUR OWN DESIGN WITH TOOL CHANGER

For a line with these precise characteristics we can make you an immediate offer, as this it is one of our "standards"

Coil Width 300÷2.000mm

Material Thickness .5÷4mm

Coil Weight max 32ton

Coil Internal diameter 450-800mm

Coil External diameter 700-2.100mm

01. ENTRY COIL CAR

02. UNCOILER, MANDREL TYPE, SELF-CENTERING

03. POWERED HOLD-DOWN ROLL

04. COIL THREADING STATION

05. ELECTRONIC COIL EDGE CONTROL

06. PINCH ROLLS AND CORRECTIVE STRAIGHTENER

07. CROP SHEAR

08. COIL CENTERING SYSTEM

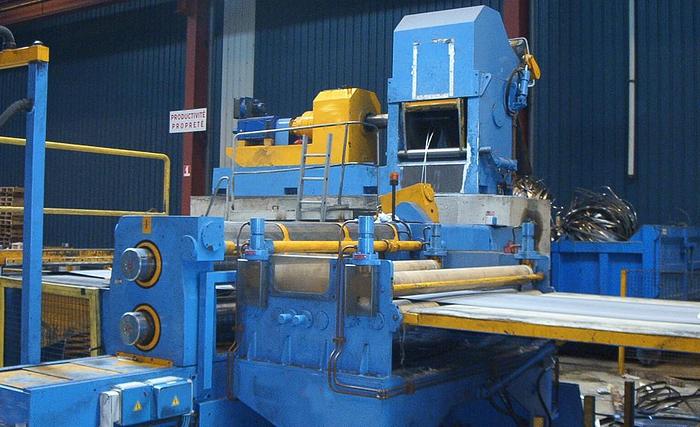

09. SLITTER WITH TOOL CHANGE CAPSTAN

10. SCRAP WINDERS

11. PIT CONVEYOR IN/OUT FOR LOOP PIT, WITH HYDRAULIC TABLE

12. MOBILE TENSION UNIT, FELT-TYPE TENSION STAND W. DEBURRING ROLLS & BRIDLE SYSTEM

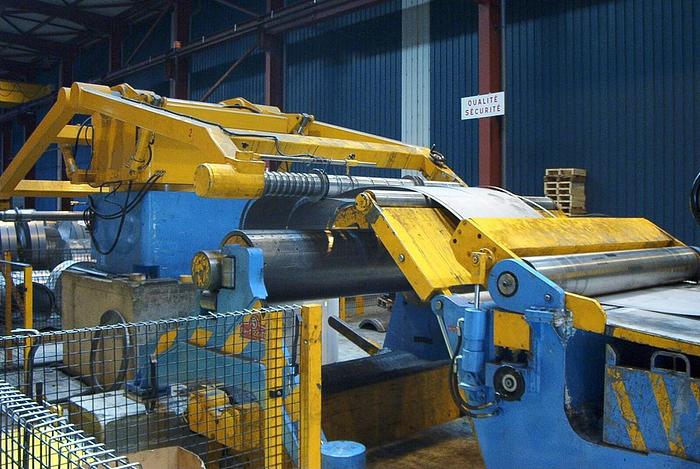

13. RECOILER

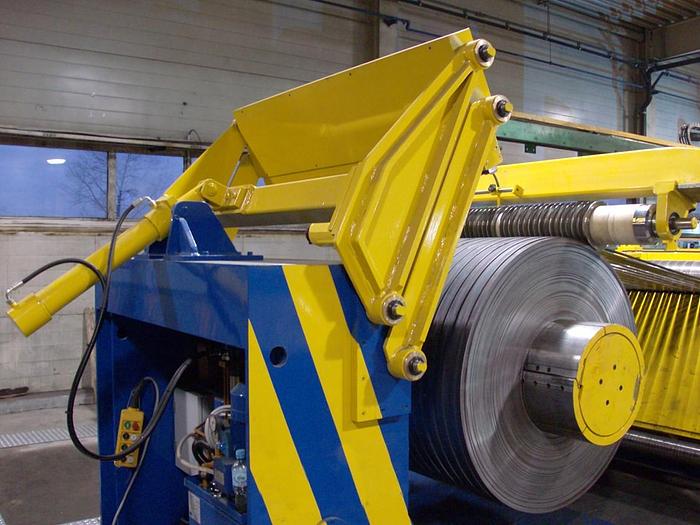

14. OVERARM, CANTILEVER MOUNT

15. EXIT COIL CAR WITH HYDRAULIC PRESSURING ARM

16. MOTORIZED 2-ARM TURNSTILE

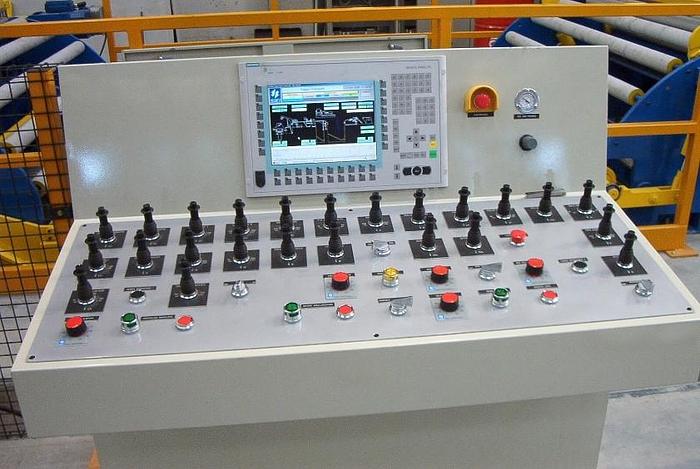

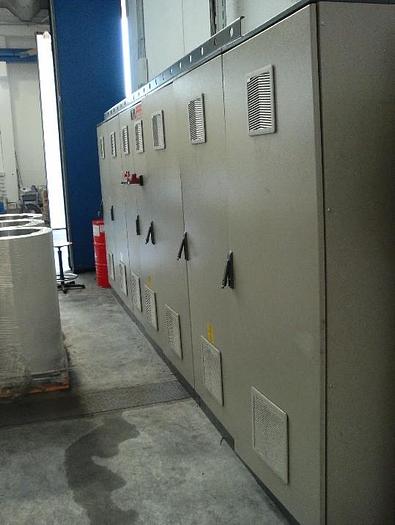

17. CONSOLES

With max resistence of material 1200 MPa:

20 cuts at thickness 2mm - Speed 100m/min.

30 cuts at thickness 1mm - Speed 120m/min.

34 cuts at thickness .5mm - Speed 120m/min.

With max resistence of material 400 MPa:

09 cuts at thickness 4mm - Speed 100m/min.

18 cuts at thickness 4mm - Speed 60m/min.

20 cuts at thickness 3mm - Speed 80m/min.

34 cuts at thickness 3 mm - Speed 50m/min.

40 cuts at thickness 2 mm - Speed 100m/min.

34 cuts at thickness 1 mm - Speed 200m/min.

34 cuts at thickness .5 mm - Speed 200m/min.

-
