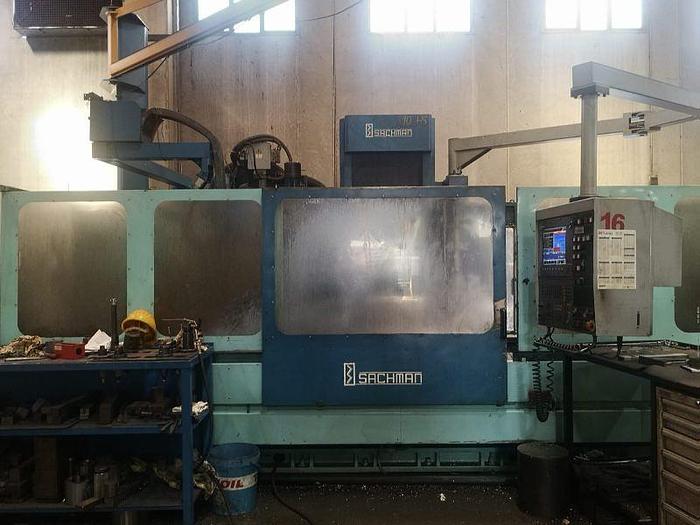

SACHMAN T10 HS Bed Type Milling Machine #4996

SACHMAN T10 HS Bed Type Milling Machine #4996

orCall +39 393 577 2205

Description



€ 85.000




Year 1998

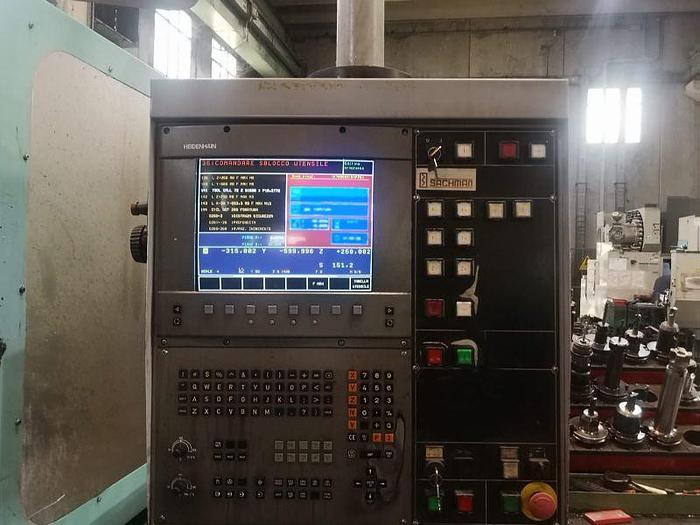

Heidenhain TNC-426 CNC




●   X axis travel (longitudinal) 2000mm

●   Y axis travel (transversal) 1075mm

●   Z axis travel (vertical) 900mm

●   table size 2200x710mm

●   number of T slots 6

●   width of T slots 18mm

●   table load 3000kg

●   rapid feeds axis 25000mm / min

●   automatic head on 45 ° inclined plane n ° divisions on the 2 joint 144

●   automatic head with minimum divisions on the 2 joints 2,5° degree

●   spindle speed with gearbox 4000rpm

●   spindle nose ISO 50

●   spindle motor 21kW

●   tool storage 24

●   total installed power 25kW

●   floor space 5370x3753mm

●   height of machine 3035mm, weight 10500kg


-------------------------------------------------------------------------------------------------------------------------


■    Sliding of axes on linear roller guides

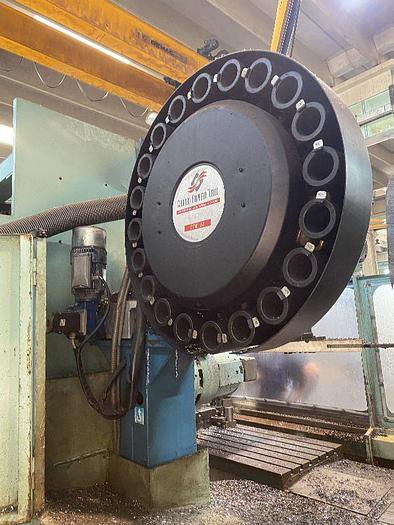

■    Tool magazine with 24 positions

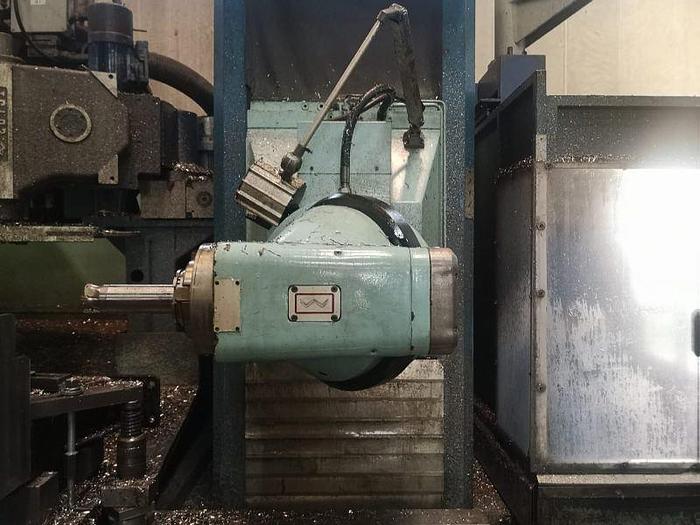

■    Automatic head 2-axis divisions on the two joints every 2.5° Kosmos

■    Preparation to install the 4th axis with dirver

■    Chip conveyor chaine type

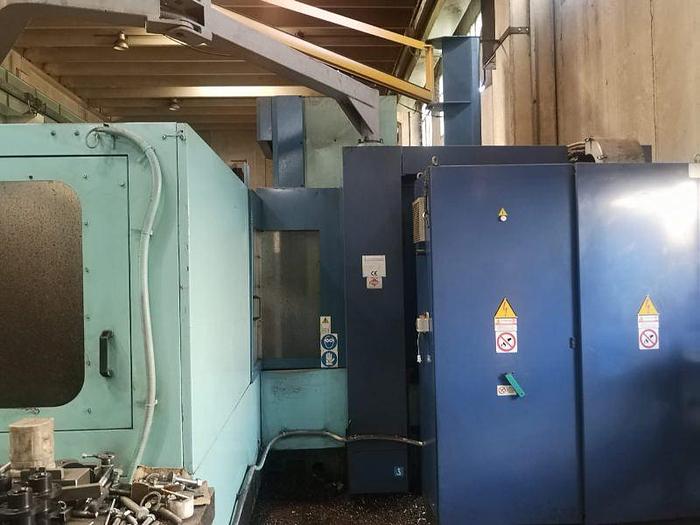

■    Splash guard CE Norm

■    Operator and maintenance manuals

■    CNC manuals






Scorrimento assi su guide lineari a rulli

Magazzino utensili a 24 posizioni

Testa automatica a 2 assi divisioni sui due snodi ogni 2,5° x 2,5° Kosmo

Predisposizione quarto asse con azionamento

Convogliatore trucioli a nastro incernierato

Carenatura integrale a norme CE

Manuali macchina e operatore

Manuali istruzioni per il CNC

Anno di costruzione 1998








-


-

Specifications

ManufacturerSACHMAN
ModelT10 HS Bed Type Milling Machine #4996
ConditionUsed
