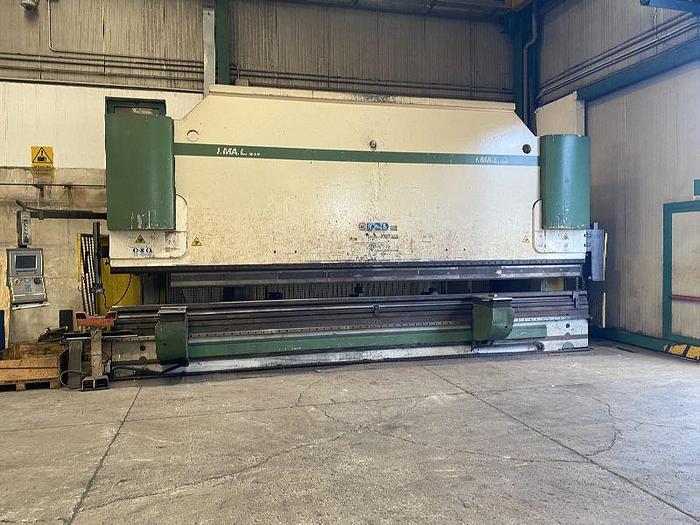

IMAL 7100mm x 420t Press Brake (Used) #4991

MODEL: LEXUS 420/71

Year when bult: 2002

CE

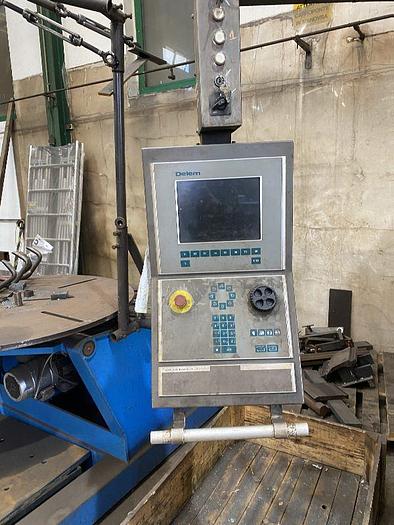

Control system DELEM DA65 - w. video graphics

Bending power ..... 420 t

Bending length ..... 7100 mm

Space between the uprights ..... 6100 mm

Gap: 500 mm

Adjustable ram stroke: max. 350 mm

Type of press drive ..... Hydraulic

Numober of axes: 7 > X1-X2-X3-R-Z1-Z2-Z3

R axis powered stroke 150 mm

NC-operated hydraulic bed compensation

Powered back gauge with 800 mmm stroke, second hit 1100 mm

Universal bending blade in SAE 1080 grade steel, in 1000+2550+2550+1000 mm segments

Die in SAE 1080 grade steel, lenght: 7100 mm

Hydraulic blade clamping in 1000 mm sections

Totel installed power ..... 37 kW (the hydraulic power pack: 30 kW)

Good condition

-

-

-

-
