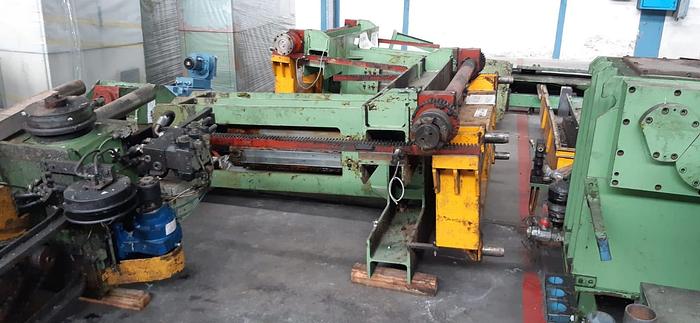

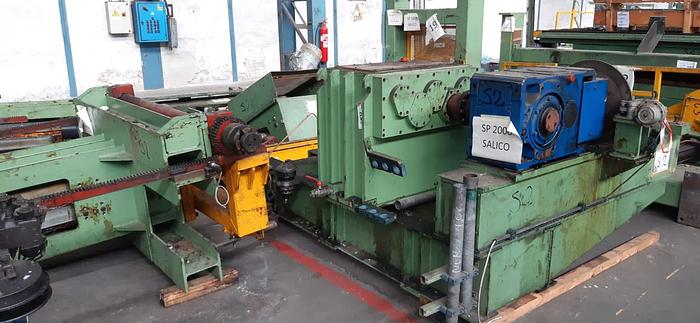

SALICO 2000x6mm Rot. Shear CTL Line (Used) #4964

€ 600.000

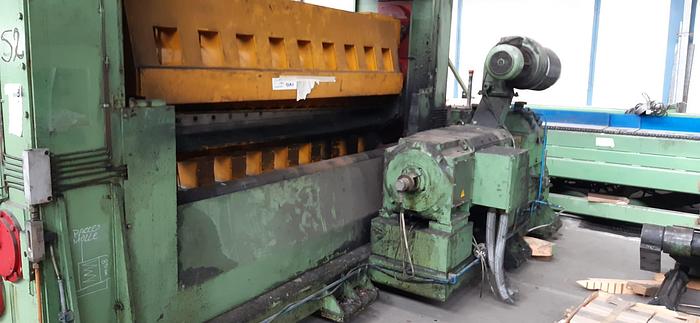

2000mm x 6mm Hot Rolled Steel, Rotary Shear Type Line

Built: 1993; installed: 1994; modified: 2000

• minimum coil width 500mm
• minimum material thickness .8mm

Top line speed: 80m / minute (with material thickness up to 3.9mm)

> see Attachs. at the bottom

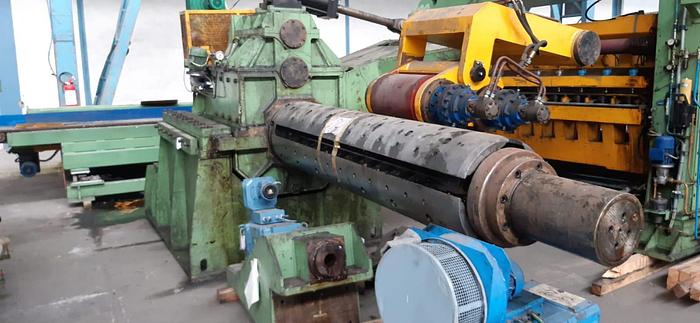

30ton decoiler

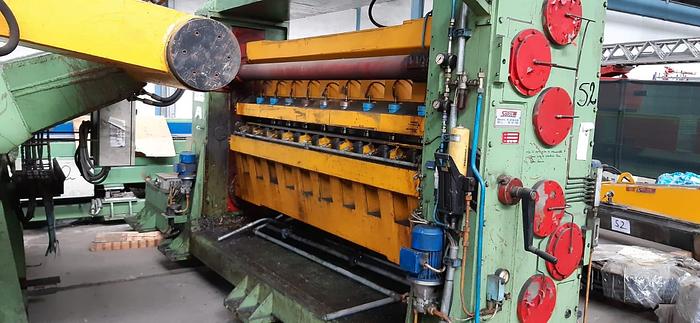

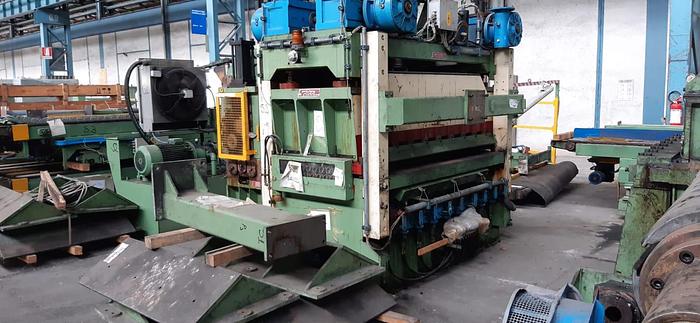

4-HI, 15 roll leveler with dia. 65mm work rolls and 9 rows of back-ups

2-box, 3m x 2 magnetic sheet stacker

Sheet length: 500mm to 6.000mm

• Non-stop operation when making max. 3m long sheets

Line direction left to right

400V/50Hz

Dismantled, warehoused

Full details in the PDF Attach at the bottom

-
