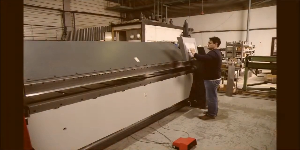

F&P 4.0mm TSM Type Folders #4943

TSM

1270mm x 4.00mm

1520mm x 3.50mm

2020mm x 3.00mm

2520mm x 2.50mm

3020mm x 2.00mm

4020mm x 1.50mm

(R= 400N/mm2)

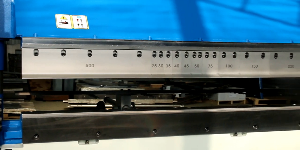

The contact force is led out by a pair of trapezoidal screws on both sides of the clamping beam. The folding beam is of solid welded construction and equipped with a crowning system of the bar, which allows to achieve the required accuracy over the entire length of the bend. Adjustment of the folding of the beam to the desired thickness of the sheet is very easy and fast through quick fixators

See Attachs. TSM and Summary at the bottom

See #4936 for general information on the range

The main advantages of these quality, well-priced machines:

• fast workcycle, short setup time
• very accurate bends obtained
• as the blank is placed on machine back gauge, a single operator can easily handle even largely-sized parts
• no need for a lot of purposely-designed tooling
