F&P Coil Fed Laser Cutters (New) #4213.1

< CLICK TO ENLARGE IMAGES

1020mm / 1270mm / 1550mm x 2mm

2kW

25m / minute

Advantages of our laser cutters

• High speed cutting of different materials like Steel, Galvanized, Aluzinc, Plastisol, Aluminum, Stainless steel, etc. (max thickness: 2.0 mm)
• Max. speed 25 m/min. Accuracy, +/- .2 mm, including holes
• Any parts that can be drawn by a CAD program, can to be cut
• Few maintenance, acceptable energy consumption with the fiber laser. We only use high quality IPG laser sources and Precitec cutting heads
• Limited noise during operation
• The sheets are moved by a linear drive by pneumatic clamps, forwards and backwards with a very accurate movement and few risks of crashes
• Easy operation by touch screen
• In lieu of Nitrogen we use compressed air, much easier and cheaper to supply to the machine. Just a good compressor with approx. 650 ltr/min capacity and air drier suffices. (We supply a booster to get sufficient pressure)

• We offer a wide variety of optional equipment to customize the machines

 The machines are programmed by independent software, for developing and programming. We offer the most used Autodesk Camduct or Eurosoft software, but using other systems is possible with the universal CNC control of the machine

 After ending a cutting program, the sheet is cut off and pushed out of the machine. Next program can be started automatically

Autodesk Camduct or Eurosoft Cutexpert ^:

 Very efficient programming of standard parts for insulation cladding or HVAC, independent from the machine. Programming possible in the workshop or at office

 Complete library with parts and fittings for Insulation cladding and air ductwork

 Run on a Windows PC, offline from machine: allowing a high occupancy rate

 A library with preference-parts can be made by the operator

 Standard parts can be stored in any default, just to minimize programming time

 Supplements for seams and connectors can be programmed and stored in infinite numbers, with or without fixing holes and notches

 Data input of data quick and uncluttered, with clear 3D views of parts

 Developments can quickly be monitored and, even changed before accepting

 Different parts can be combined

 Automatic or manual dividing of those developments too big to be cut in one piece

 2D Drawing module

 DXF and DWG import and export

 Automatic and manual nesting

 Clear lists can be printed to organize production

 Cost calculation modules

 Project administration

 Programs can also be made for other cutting machines (plasma or laser); tube program for cutting tube developments

 Using full sheet width

 With or without fixing holes. The number of holes is adjustable

 Diameter of holes also adjustable; supplements, and the distance of hole to end of tube adjustable

 Fixing holes can be cut conical

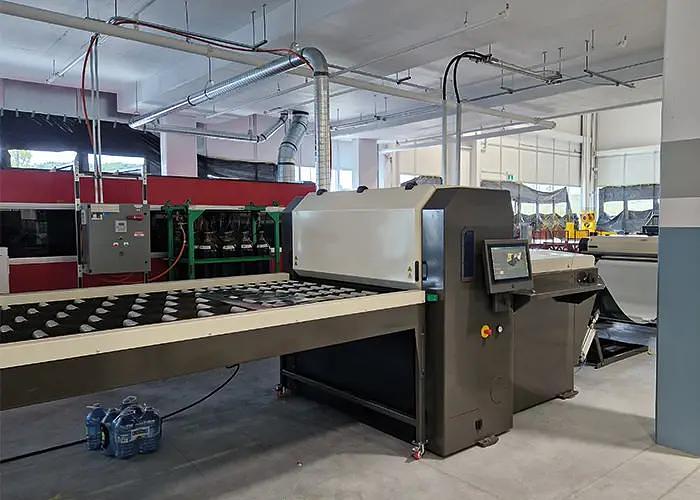

Standard Coil Fed Laser Cutting Machine type 2010-20

. >> A demonstration machine of this Model is always visible at our plant .

1020mm

2kW

25m / minute

Manual decoiler type ASF open-ended / 1000kg x 1000mm most used

Air compressor, screw type, Creemers RCA 5,5/200 Compactair; with tank and air dryer

Extractor with automatically cleaned filters, 1000-1600 m3/hour incl. spark shield

(excluding Atex and Excluding piping to the machine)

Programming software Autodesk Camduct rental licence per year tube cutting programming

and:

 Cutting machine with control system, servo drives and Precitec cutting head

 IPG Laser source, placed under the machine: type YLS 2000 U

 IPG Chiller for the laser source

 Pneumatic feed-in table between straightener and laser, under loop

 Feeding rolls, which take out the cut sheet automatically

 Roll-off table with rollers, length 2m

 Booster to increase the air pressure for cutting with air ^

 Straightener with 5 work rolls + 2 rubberized feeding rolls. Capacity: 1020mm x 1.5mm (St 37)

Start–stop control with dancing arm

Options:

Manual decoiler with loose mandrel on wheels, 1500 kg - Model AS

Manual decoiler with loose mandrel, 5000 kg - Model AS

Manual decoiler, open ended 1000mm x 2000 kg, single - Model 2910

Motorized decoiler, open ended, 2000 kg hydraulic mandrel - Type 2952

Multiple decoilers with selector system

3m roll-off table in lieu of 2m

4m roll-off table in lieu of 2m

CAD / CAM software:

Eurosoft Cut Expert Stand-alone License

Autodesk Camduct yearly License

Software training, per day in our house or online

Standard Coil Fed Laser Cutting Machine type 2012-20

1270mm

2kW

25m / minute

Cutting machine with control system, servo drives and Precitec cutting head

 IPG Laser source placed under the machine, type YLS U

 Chiller for cooling the laser source

 Pneumatic feed-in table under loop

 Feeding rolls which automatically take out the cut sheet

 Roll-off table with rollers, length 2m

 Booster to increase the air pressure for cutting with air.

 Straightener with 5 work rolls + 2 rubberized feeding rolls. Capacity: 1270mm x 1.25mm (St 37)

Start – stop control with dancing arm

Options:

Manual decoiler with loose mandrel on wheels, 1500 kg - 1250mm

Manual decoiler with loose mandrel on wheels, 5000 kg x 1250mm

Manual decoiler, open ended 1250mm x 1000 kg

Manual decoiler, open ended, 1250mm x 2000 kg single - Type 2900

Motorized decoiler, open ended, 3000 kg hydraulic mandrel

Multiple decoilers with selector system

Extractor with automatically cleaned filters, Ca. 2000 m3/hr. incl. spark shield and incl. noise damper

3m roll-off table in lieu of 2m

4m roll-off table in lieu of 2m

CAD / CAM software:

Eurosoft Cut Expert Stand-alone License

Autodesk Camduct perpetual license

On site training / Installation/ junior Consultant, per day

Tube program for cutting tube developments:

 Using the full sheet width 1000 or 1250 mm

 The length can be cut into 2 equal pieces

 With or without fixing holes

 Number of holes is adjustable

 Diameter of the holes is adjustable

 Supplements and the distance of hole to the end of the tube is adjustable

 Fixing holes can be cut conical

To be arranged by customer:

 PC or Laptop for CAD/CAM software

 Printer for printing the nestings

 Screw compressor with chiller for drying the air. Cap. 650 l/min and 10 bar

 Electrical connections 400V total ca. 21 kW

 Flat concrete floor

Standard Coil Fed Laser Cutting Machine type 2015-20

1550mm

2kW

25m / minute

Advantages and features of coil fed laser cutters generally and, of these particular machines:

 It can work without interruptions, given the continue supply of material. Efficient material consumption and low waste

 The products remain fixed by microjoints. These joints can be adjusted on the machine easily. The products can then be

broken out, at the end, very easily

 Very longs parts can be produced (theoretical, of unlimited length)

 The IPG fibre laser sources we use are very modern and assure:

o optimal cutting performances with carbon steel, aluminium, stainless steel...

o low energy consumption

o reduced maintenance costs with glass fibre cable and no mirrors

 Laser source^: power 2,0 kW; type: YLS 2000 U - Brand: IPG

 Robust Precitec cutting head, type: Light Cutter - with easy manual adjusting of the focus height, automatic height

adjustment, protection glass inside

 Sigmatek machine control system and motion control operated by touch screen on left side of machine

 The machine configuration can be modified easily on customers’ demand

 The sheet moves on rollers, scratches are avoided

 The machine can be connected to more decoilers with a selector to change from one to another easily

 High cutting speed, up to 25m / min

 Very good performances with compressed air, for material up to 1mm thick. This requires a high volume compressor* and

chiller, and a booster to increase the pressure in sheet metal. (* 7.5 kW screw type compressor with 10 bar capacity)

 The machine is very compact and needs little space in the workshop

Cutting machine with control system, servo drives and Precitec cutting head

 IPG Laser source placed under the machine, type YLS U

 Chiller for cooling the laser source

 Pneumatic feed-in table under loop

 Feeding rolls which automatically take out the cut sheet

 Roll-off table with rollers, length 2m

 Booster to increase the air pressure for cutting with air

 Straightener with 5 work rolls + 2 rubberized feeding rolls. Capacity: 1550mm x 1.25mm (St 37)

Start – stop control with dancing arm

Options:

Single, manual decoiler with brake 5000 kg x 1500 mm (H frame, bearings at both sides of the coil)

Single motorized Decoiler, 3000 kg x 1500 mm (open ended decoiler with hydraulic mandrel, excl. coil car)

Single motorized decoiler, 5000 kg x 1500 mm (open ended decoiler with hydraulic mandrel, excl. coil wagon)

Multiple decoilers with selector system, manual or automatic

Extractor with automatically cleaned filters, ca. 2000 m3/hr. incl. spark shield and incl. noise damper

3m roll-off table in lieu of 2m

4m roll-off table in lieu of 2m

CAD / CAM software:

Eurosoft Cut Expert Stand-alone License

Autodesk Camduct perpetual license

On site training / Installation/ junior Consultant, per day

Tube program for cutting tube developments:

 Using the full sheet width 1000 or 1250 or 1500 mm

 With or without fixing holes

 Number of holes is adjustable

 Diameter of the holes is adjustable

 Supplements and the distance of hole to the end of the tube is adjustable

 Fixing holes can be cut conical

To be arranged by customer:

 PC or laptop (Windows) for installing CAD / CAM

 Compressor incl. drier cap. Ca. 650 l/min, pressure between 8 -10 bar

 Flat concrete floor

 Power supply 400V- 50/60 Hz with more connections

 The ducting material and assembling of the extractor.

 Internet connection to the laptop and machine for online assist

-
