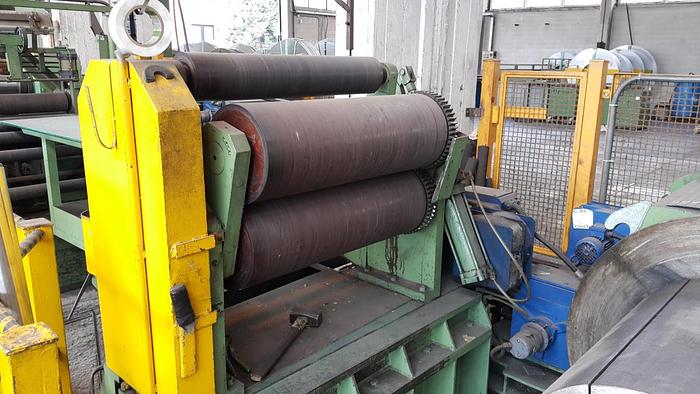

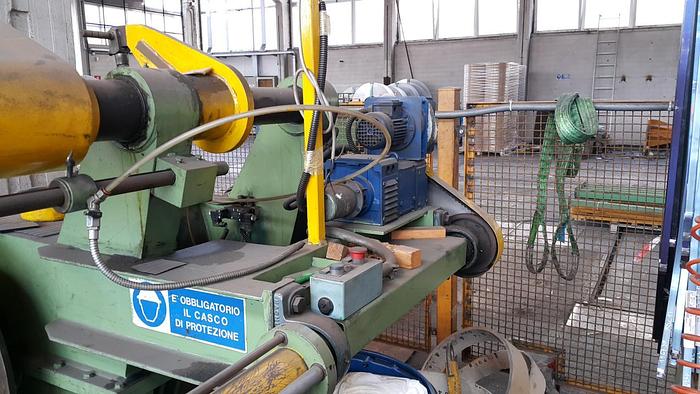

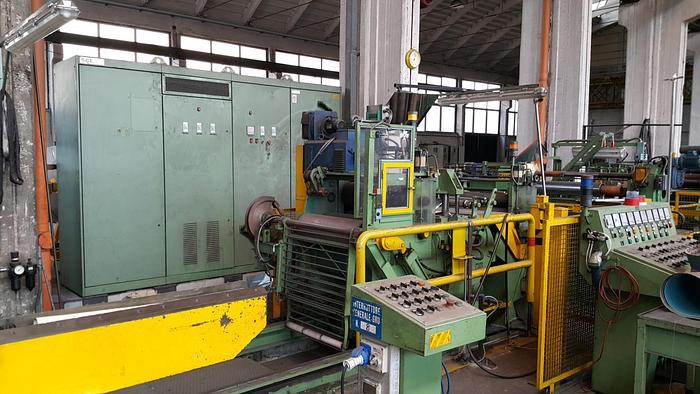

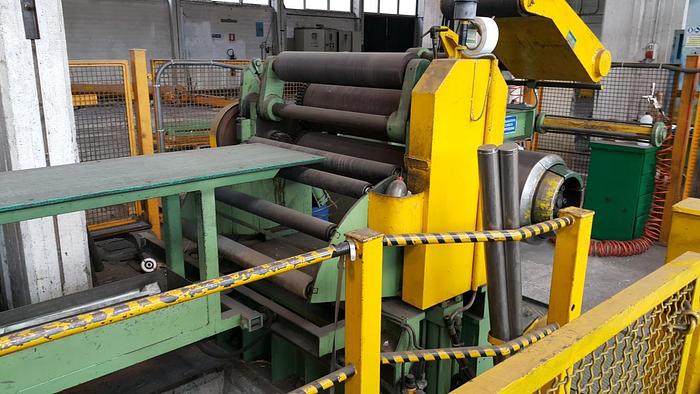

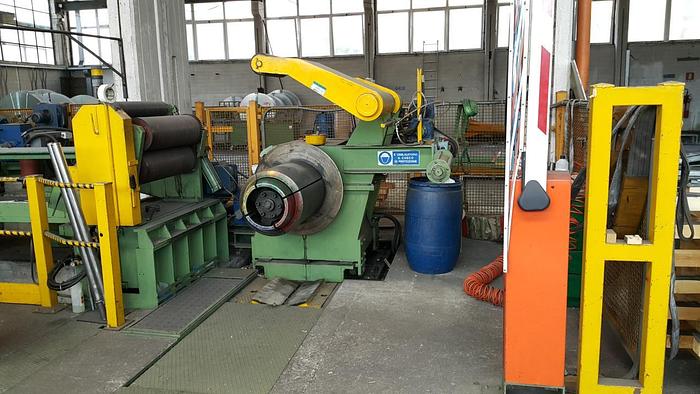

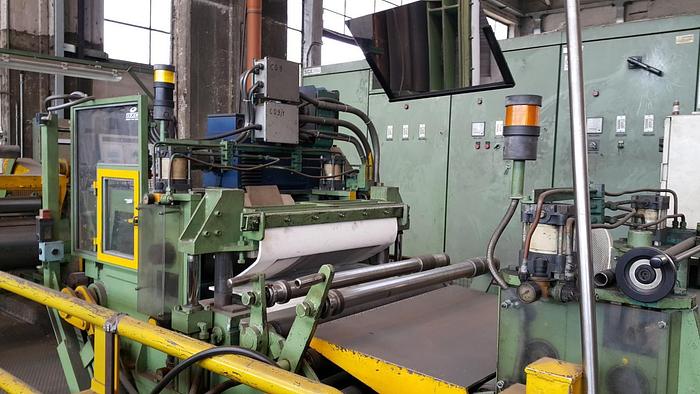

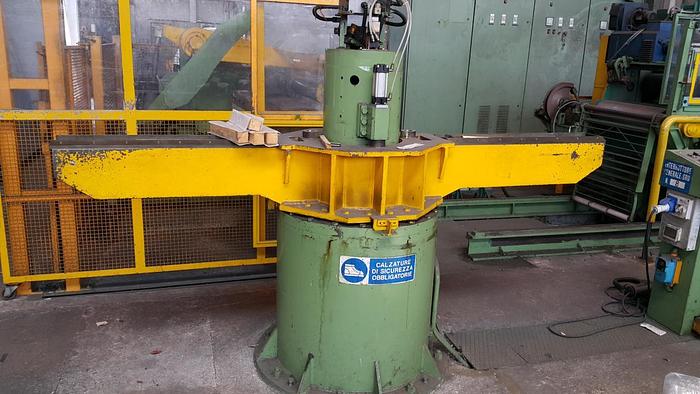

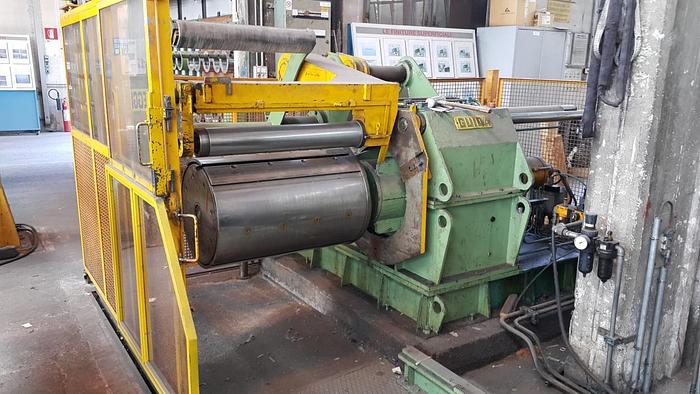

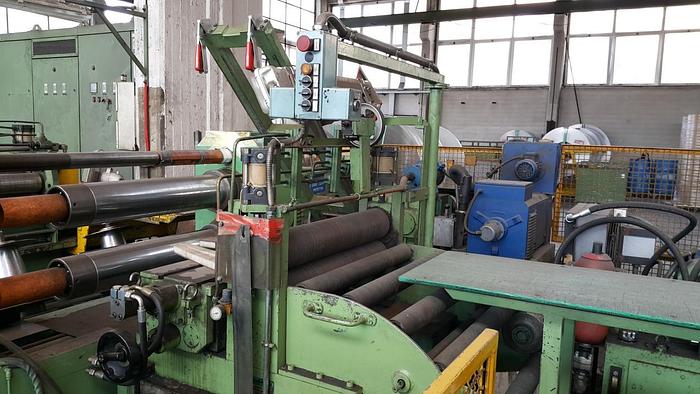

GUIDA 650x3mm Slitting Line (Used) #4918

200m / minute

Two-Headed Slitter

Minimum material thickness .2mm

Maximum 2mm stainless steel, 3mm carbon steel

Stainless Steel: ^

-          Surface condition: dry, not oiled

Breaking load max. 500 N/mm2

Yield strength max. 380 N/mm2

Resistance to cut: max. 420 N/mm2

Elongation: max. 20%

Coil max. weight: 5ton

Entry Coil OD max.: 1640mm with ID 500mm, 1510mm with ID 600mm

Entry Coil ID: 400,500,600mm / Exit: 500mm

Minimum dia. at recoiling: 520mm

Minimum entry coil width: 20mm

Rotation: anti-clockwise

Line direction: right to left

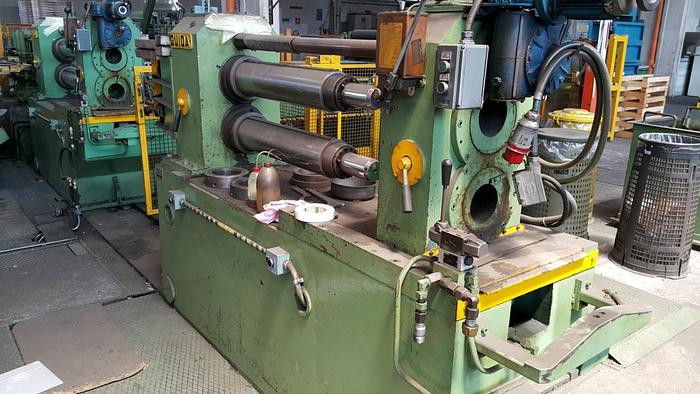

Slitter

Circular blades with OD 650mm, ID 260mm

Spacers with OD 200mm

59kW drive motor

Max. no. of cuts:

20 at .3<>1.0mm material thickness, stainless steel

16 at 1.2<>1.7mm material thickness, stainless steel

12 at 1.8<>2.0mm material thickness, stainless steel

Strip tensioning system

Mobile bridle

Scrap collection system

Wrapped up

-

-
