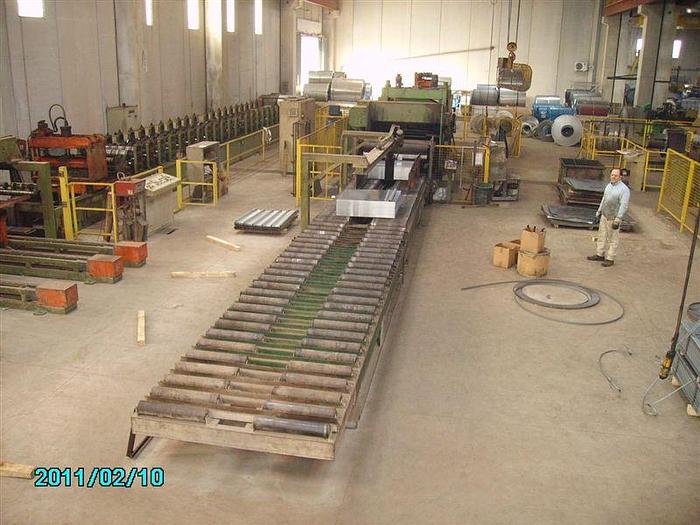

SABILA 1500x4mm CTLL (Used) #4916

€ 260.000

1500mm x 4mm / 20ton

Flying shear type - speed: 14m / minute

INSTALLED & UNDER POWER

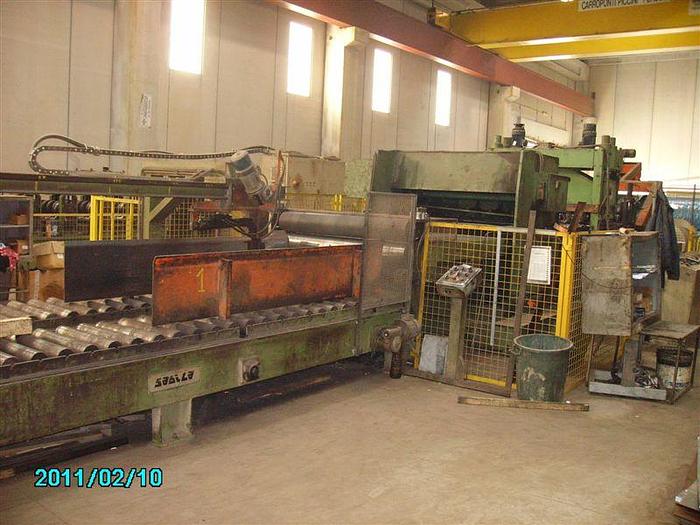

Line footprint: about 20m x 10m

Decoiler

Coil loading saddle

Peeler station

Leveler

Flying shear

Evacuation table

Sheet stacker

Electrics

^

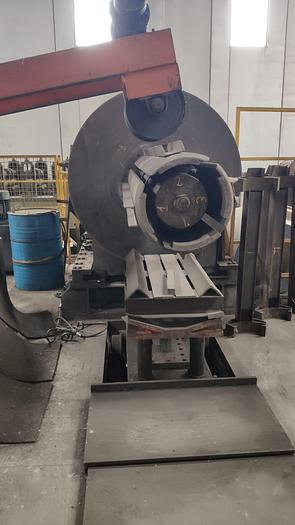

20ton BRAKED DECOILER

Sturdy base with lubricted sliding guides

Expansion of the hydraulic drum with opposing wedges

The spindle rotates on robust, oversized roller bearings

20ton coil car with hydraulic circuit brake

^

Col OD max 1600mm

Coil ID 450-550mm (> 650mm with 50mm U-shaped spacers)

- Alignment stroke 200mm

- Approximate machine weight 8.5ton

- Cleodynamic introduction-motor

ECU motor (three-phase) 4kW

20ton COIL CAR

Mobile trolley with sliding wheels and a upper "V"-shaped secttion carrying the coil

Lifting with a robust hydraulic cylinder assisted by four cylindrical guides

The translation is also ensured by a hydraulic cylinder

- Seat width 750mm

- Climb stroke 350mm

- Travel stroke 2200mm

The saddle is of the under-floor model

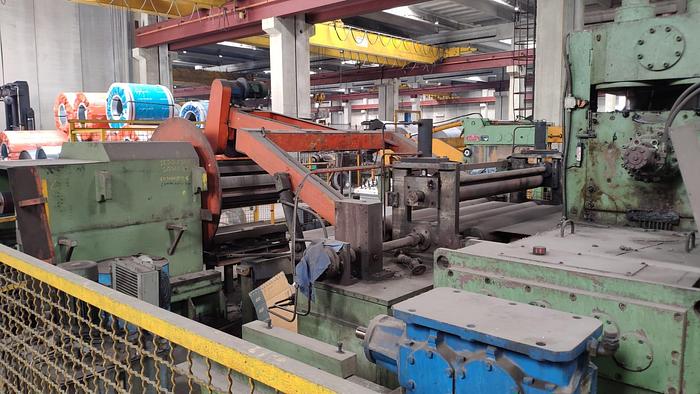

COIL OPENER

Allsteel, it consists of a pressure arm with motorized roll and a claw, moved by hydraulic cylinder

The "nail" can be positioned by another hydraulic cylinder

- Roll motor 1,5 kW

- ECU motor 4 kW

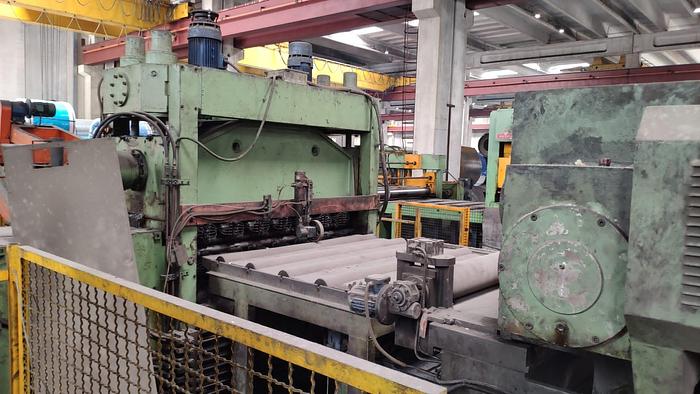

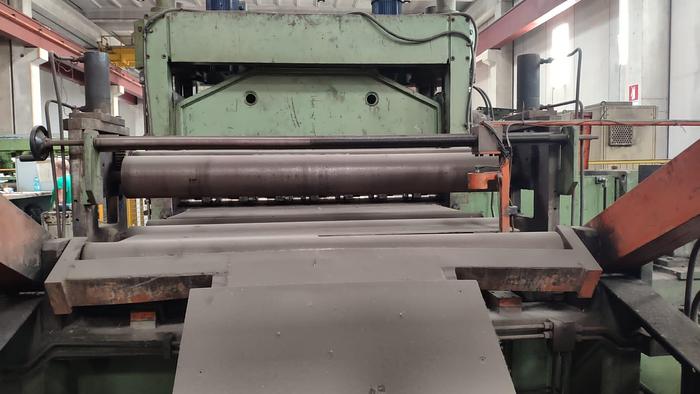

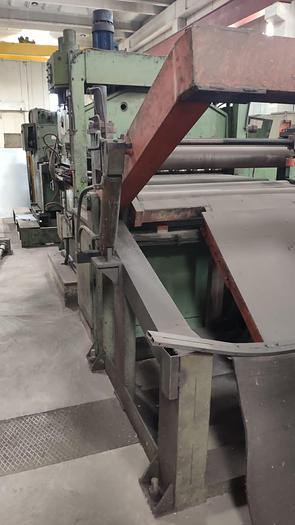

LEVELER

With adjustment of the upper bridge both transverse and longitudinal

Work rolls in tempered steel, rotating on lubricated bushings; back-ups with adjustment of the pressure. Transmission of motion in closed crankcase, in oil bath

- Number of rolls above: 8

- Number of rolls below: 9

- Roll diameter: 55mm

- Minimum thickness: .7mm

- Maximum material thickness: 4 mm

- Three-phase motor, 20kW

- Machine weight: 11ton

- Lower back-ups: 7

- Upper back-ups: 7

^ Dia. of back-ups: 100mm

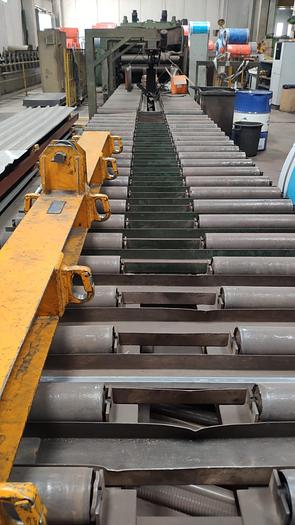

TRANSFER TABLE FROM LEVELER TO SHEAR

Allsteel, length: 1350mm

with 5 undriven rollas, motor :0.75kW

SHEAR

With air-operated clutch brake; silicon steel blades

Motor: 4kW

SPM: 40 max.

Machine weight: 2ton

Minimum cut length 1000mm

POWERED EVACUATION CONVEYOR

Length: 2100mm

Motor: 2.5kW

SHEET STACKER, in three sections: motorized, weighing, storage

Head and side equalizers

Lengths^: 5170+6300+4000mm

Width: 1650mm

Maximum stack weight: 5ton

Maximum stack height: 350mm

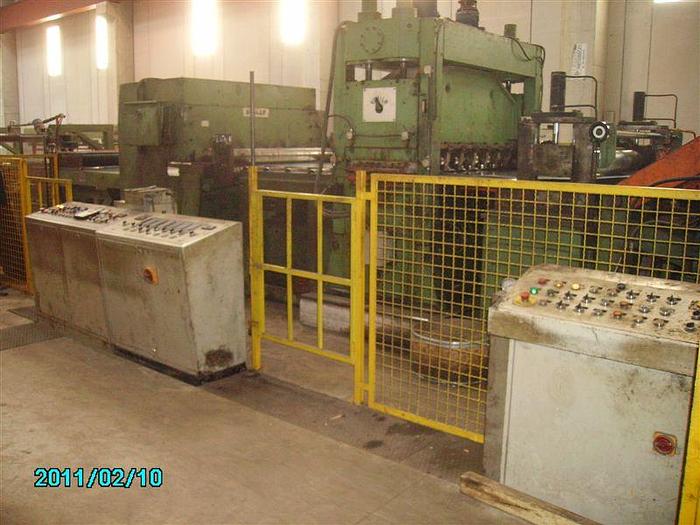

ELECTRICAL PANEL

With all command and control instruments on dashboard

The sheet length measurement is by incremental bi-directional encoder

A programmer is included for the length and number of pieces to be cut

-
