F&P 3.5mm Stop/Start CTL Lines (New) #4913

For material up to 5mm thick

• with STRAIGHTENER

10m / minute

Coil Width: min. mm. 700 – max mm. 1.550 mm (< more on request)

Material Thickness: .5 mm ÷ 3.5 mm

Coil weight: generally up to 15.000 Kg

Coil internal diameter: generally 480 – 530 mm

Coil external diameter: generally up to 1.600 mm

GENERAL FEATURES OF THE LINES

Speed of introduction                                             0 - 5 m/min.

Max working speed                                                0 - 10 m/min  START/STOP

OVERFLOOR TYPE COIL CAR

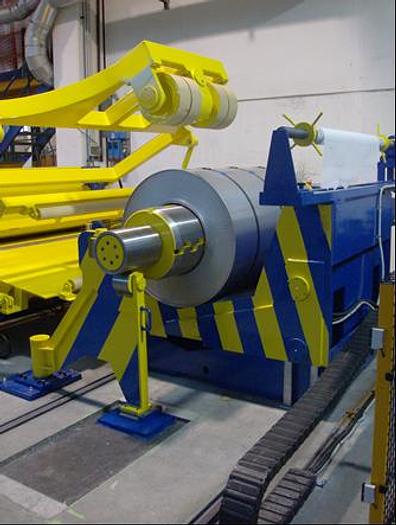

SELF-CENTERING DECOILER

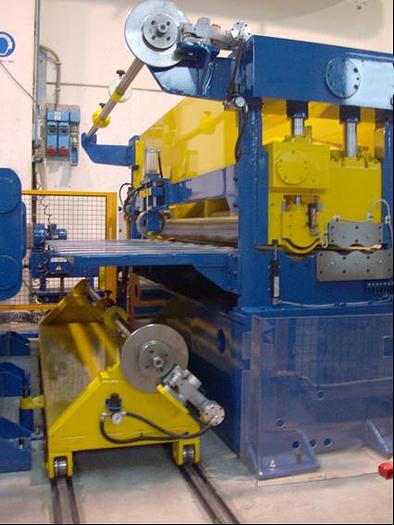

MATERIAL THREADING TABLE, STRAIGHTENER, CALIBRATING ROLL

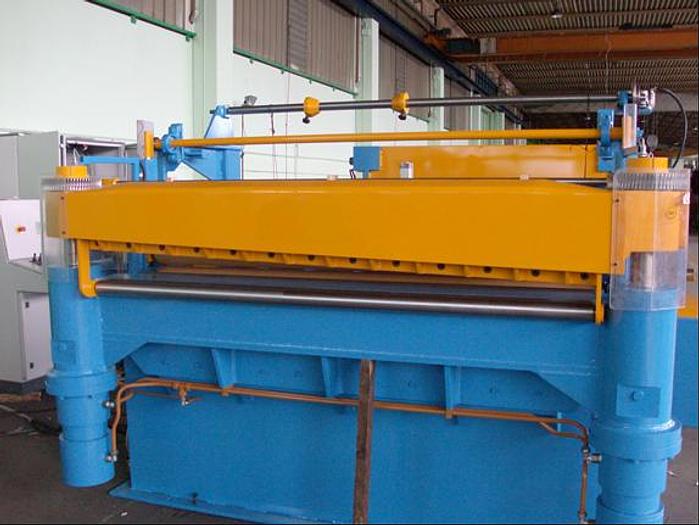

HYDRAULIC STATIC SHEAR

OPTION: SHEET STACKER

> See diagram in Attach., at the bottom

Tensions and inputs

Three-phase tension                                              380 V +/- 10% 50 Hz + ground

Auxiliary tension                                                     110 V  +/- 10% 50 Hz

Electro-valve tension                                              24 V  a.c.

Hydraulic unit

Pressure of nominal operation                               from 100 to 105 bars

Pneumatic features

Pressure of nominal operation                               6 bars

-
