F&P + Other 1620x3mm CTL Line (Used) #4907

Built: 2017 VERY GOOD CONDITION

Line direction right to left

Two 6-HI Levelers

Line footprint: about 30m x 10m > see Attach.* at the bottom

(* note - 2nd leveler missing in the drawing: it was added at a later time)

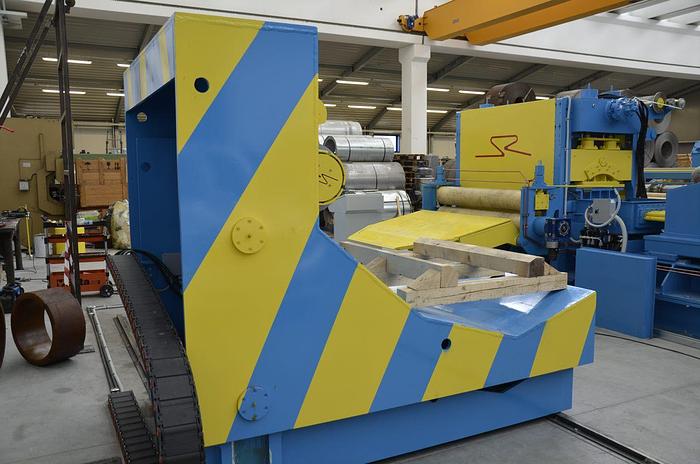

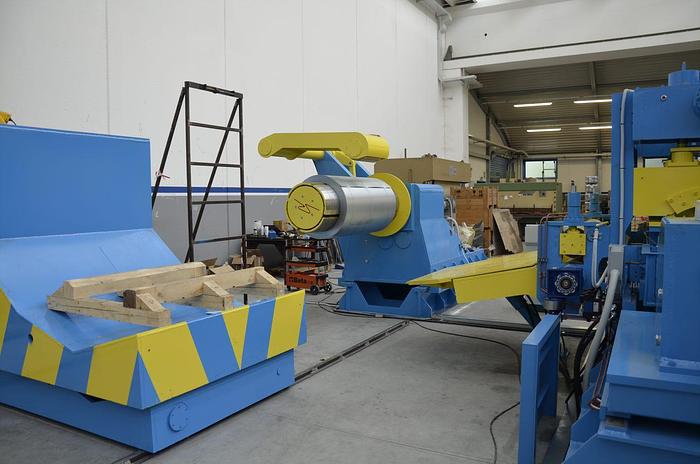

01 15ton coil loading car, off-floor type

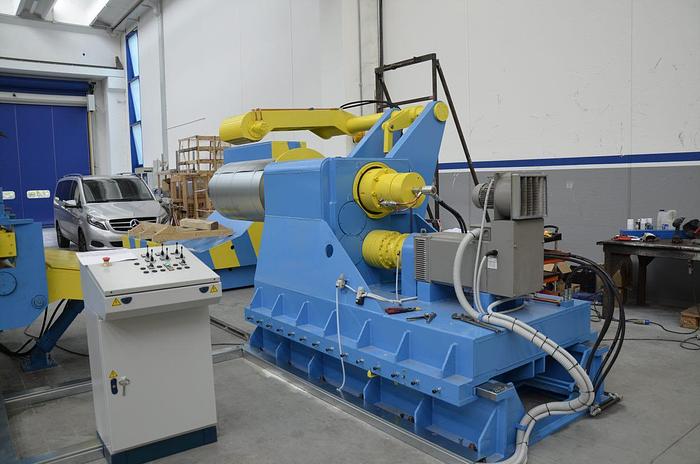

02 15ton decoiler, self-centering, 480-530mm

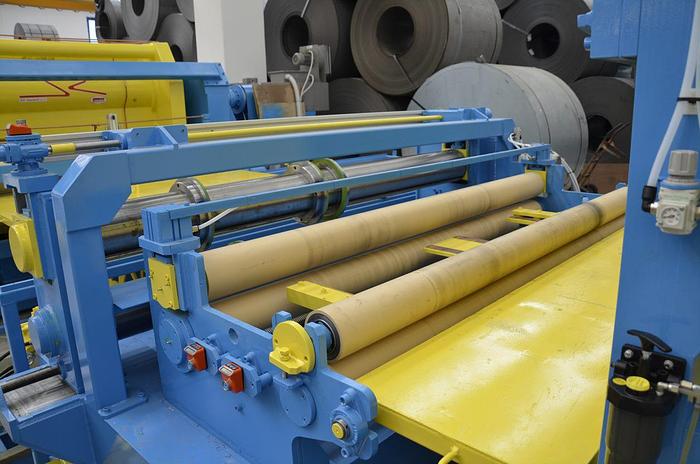

03 Material entry table & pinch rolls

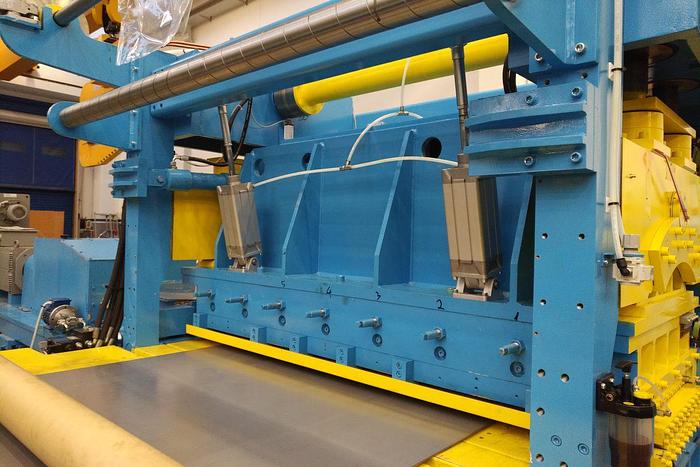

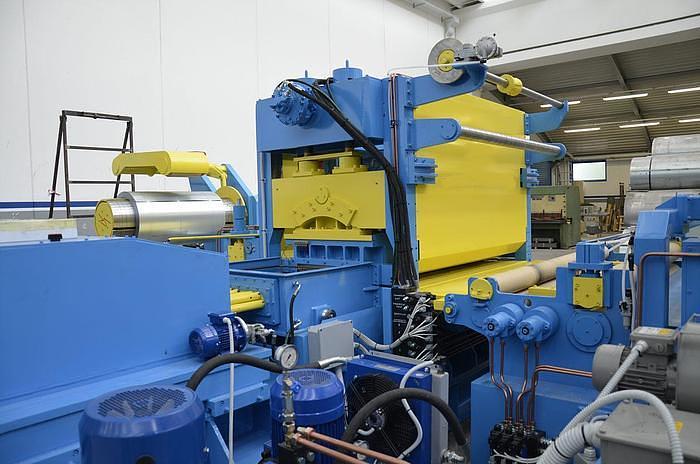

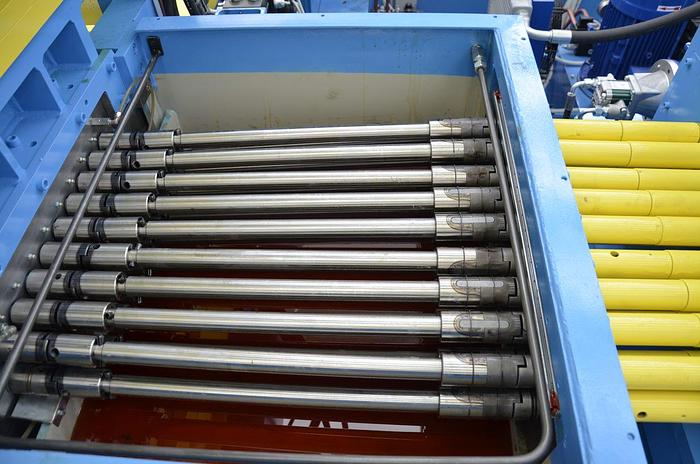

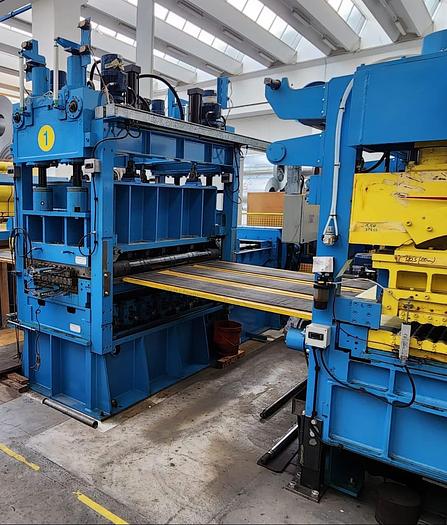

04 1st 6-HI leveler, 19 roll with roll dia. 48mm, 7 back-up sets, removable roll pack (.4mm to 2mm)

04.1 2nd 6-HI leveler by FIMI, 19 roll with roll dia. 42mm (1.5mm to 3mm)

05 Coil edge trimmer & baler -- 40kW A.C.

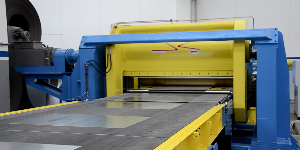

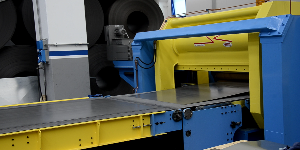

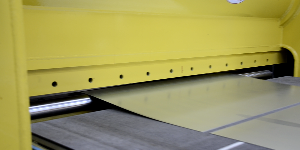

06 Shear -- 150kW A.C. / 30spm. Minimum cut length 500mm

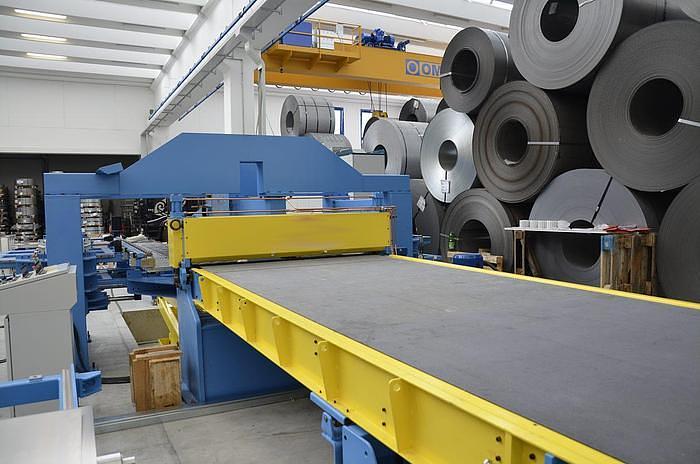

07 1st sheet inspection & evacuation belt conveyor, 2m long

08 2nd sheet inspection & evacuation belt conveyor, 4m long

09 Evacuation pinch rolls

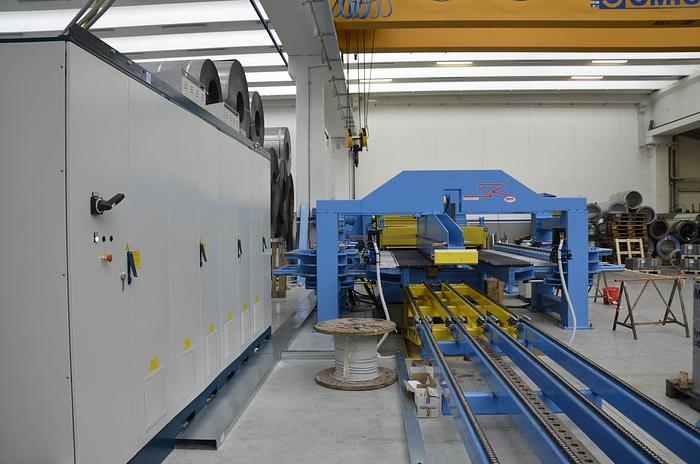

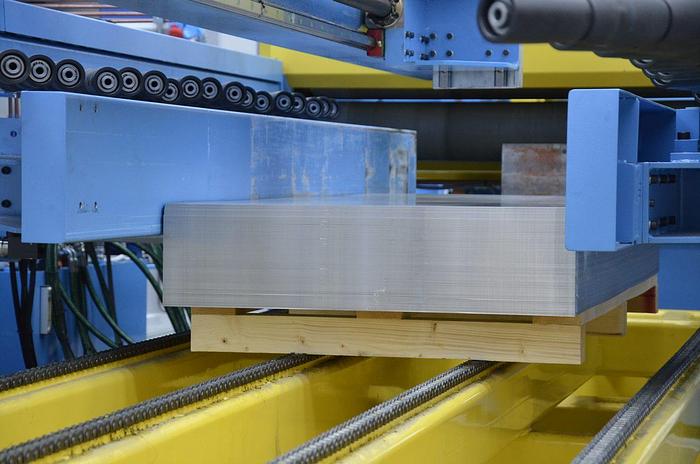

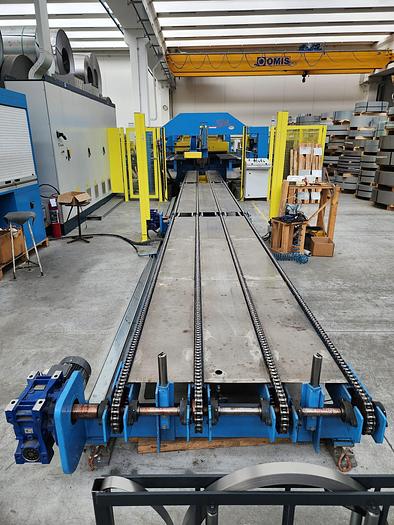

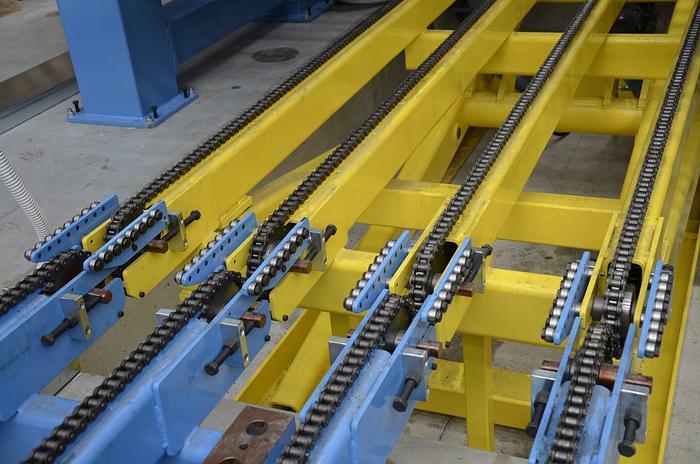

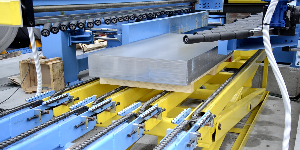

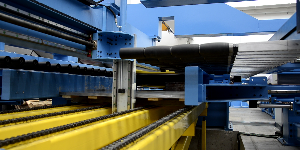

10 Chain type sheet stacker

11 1st 3500mm off-loading catenary & weighing station

12 2nd 3500mm off-loading catenary & weighing station
