F&P 2050mm x12.7mm Slitting Line (New) #4902

11895-23

EXAMPLE CUSTOM DESIGNED LINE BY US

600mm to 2050mm x 3mm to 12.7mm Dual Head Coil Slitting Line

for Hot Rolled Steel

Tensile strength:

max 415 N/mm²

Yield strength:

max 355 N/mm²

Coil Weight max.: 46 tonne

Coil ID: 650mm to 900mm

Coil OD: 1270mm to 2300mm

Line max. speed:

120m / minute > 60m / minute with 3mm to 8mm material thickness

60m / minute with 8mm to 12.7mm material thickness

Max. cutting capacity:

12 cuts at 03mm - max. 120m/minute, min. strip width 150mm

11 cuts at 04mm - max. 120m/minute, min. strip width 150mm

09 cuts at 06mm - max. 100m/minute, min. strip width 200mm

07 cuts at 08mm - max. 090m/minute, min. strip width 200mm

06 cuts at 10mm - max. 060m/minute, min. strip width 300mm

05 cuts at 12mm - max. 060m/minute, min. strip width 400mm

03 cuts at 12.7mm - max.50m/minute, min. strip width 500mm

Main power supply (3 phase)

380 V ± 10% 50 Hz ± 1%

Auxiliary power supply

230 V, 50 Hz.

Pneumatic and hydraulic solenoid valve tension

24 V, DC

Total installed power 1500 kW

Compressed air

Pressure: 6 bar

Air flow: 1.500 l/min

Hydraulic power pack

Pressure rating: 100 bar

EQUIPMENT LIST

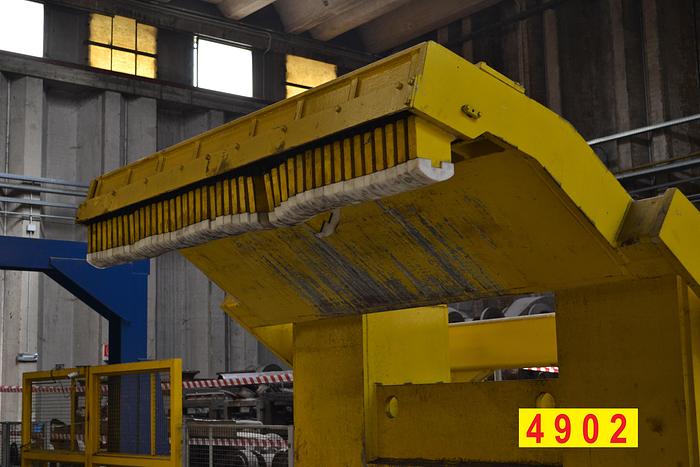

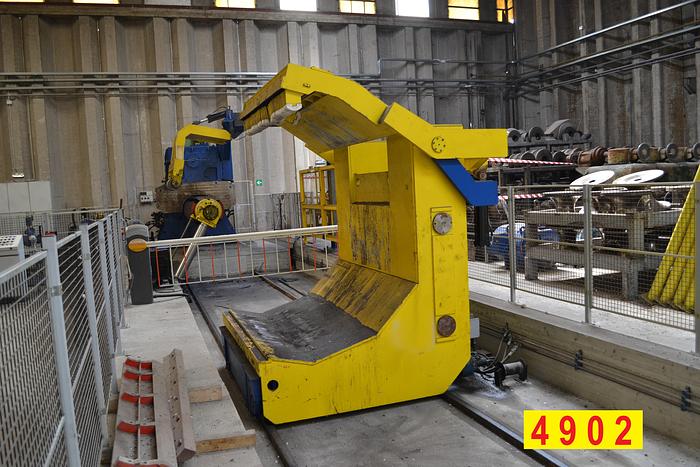

COIL LOADING CAR

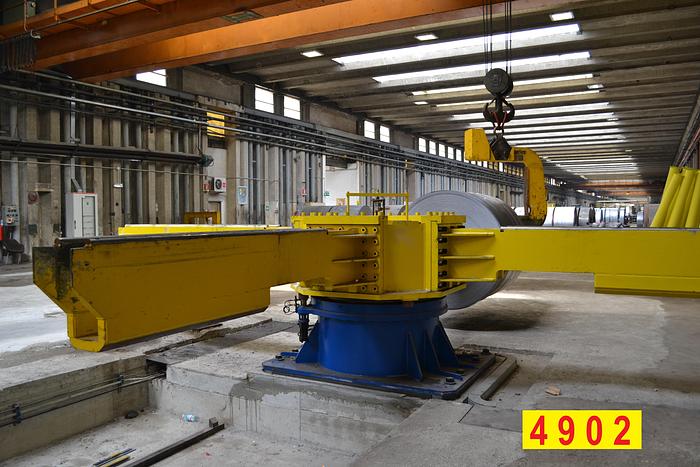

STORAGE RAMP FOR 3 COILS

COIL DIAMETER READOUT STATION

COIL CENTERING STATION

MATERIAL THREADING STATION - PEELER TABLE, PINCH ROLLS

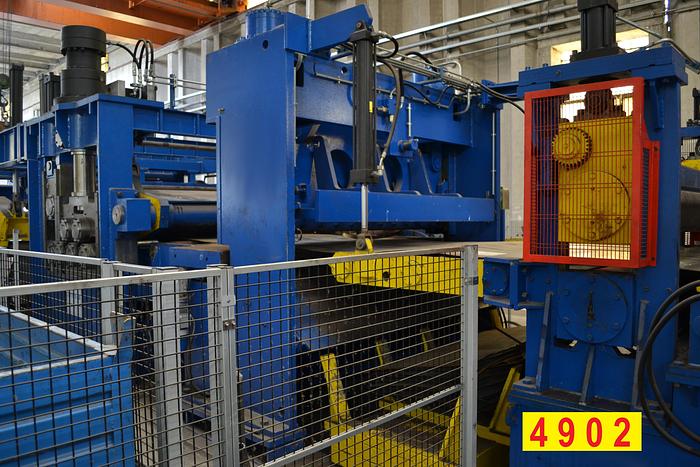

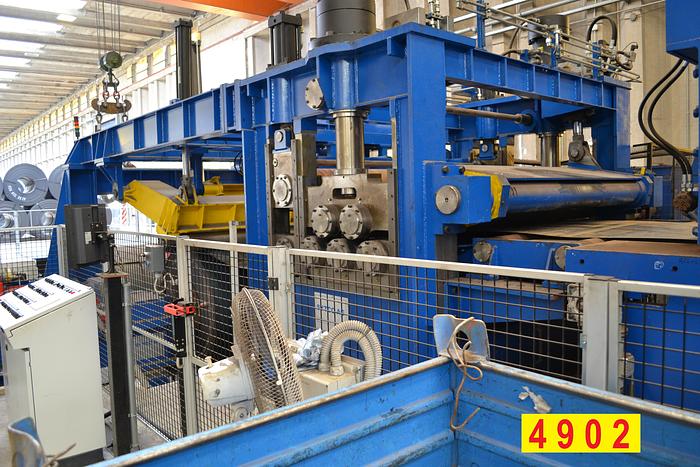

STRAIGHTENER

CROP SHEAR & BLANK REMOVER

GUIDES & FEED ROLLS

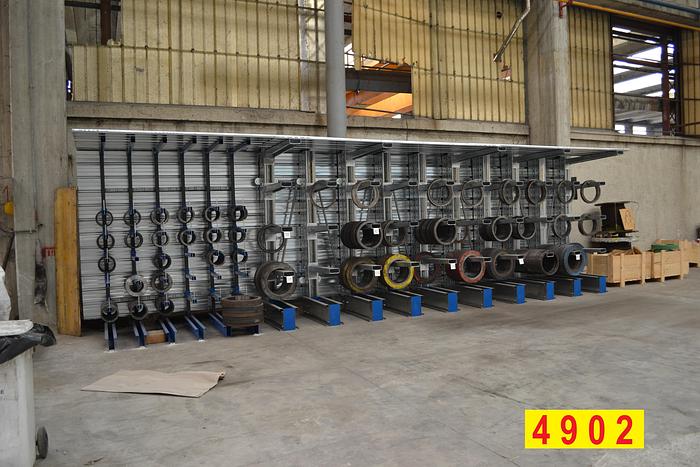

DUAL HEAD SLITTER

GUIDING ROLL TABLE

SCRAP CHOPPER & CONVEYOR

MOBILE STRIP-TENSIONING UNIT WITH ROLLS & FELT PAD

SEPARATOR SHAFTS

PINCH ROLLS

SCRAP EVACUATION TABLE

SHEET REMOVER

DEFLECTOR ROLL

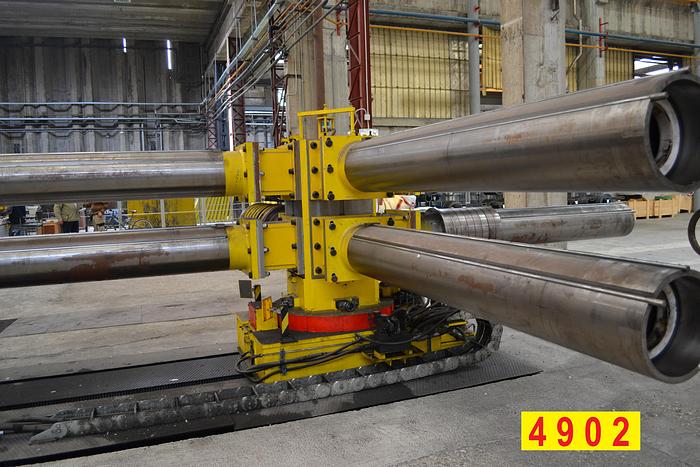

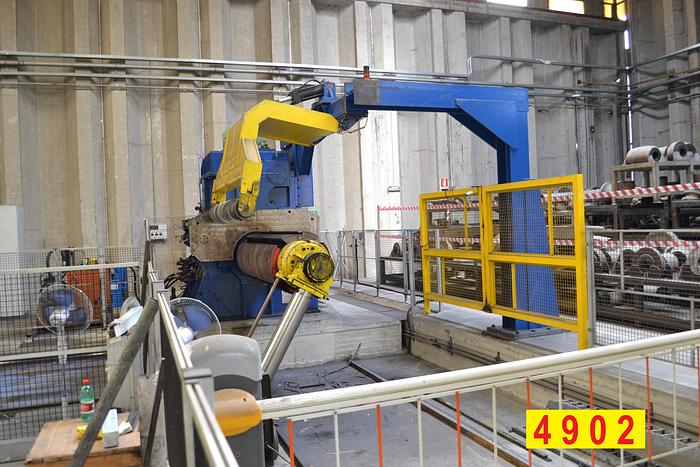

RECOILER

COIL "TAIL" PULL-OUT UNIT

COIL OFF-LOADING CAR

TURNSTILE

-
