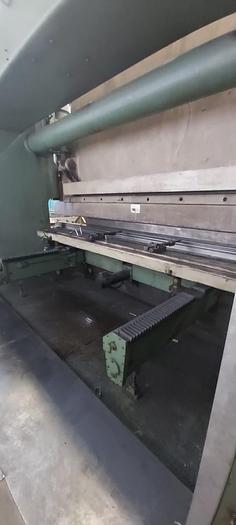

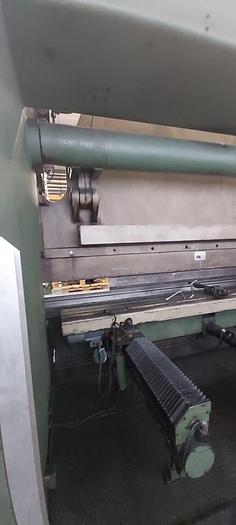

COLGAR 5100mm / 400t Press Brake #4874

Model: PI 4041/51

2-Axis Positioner

Year: 1984

Max. force (overload): 440ton

Max. return force: 94ton

Max. useful lenght: 5100mm

Free space between uprights: 4100mm

Adjustable stroke: 50-250mm

Max. table-piston distance: 500mm

Table: 225mm x 80mm

Upright gap: 400mm

Speed:

• descent 0-35mm / second
• work 8.5mm / second
• return 40mm / second

Main motor power: 30kW

Power of the bottom dead center adjustment motor: 1.5kW

Pressure: 300bar

Approx. machine weight: 36.5t

-

-

-
