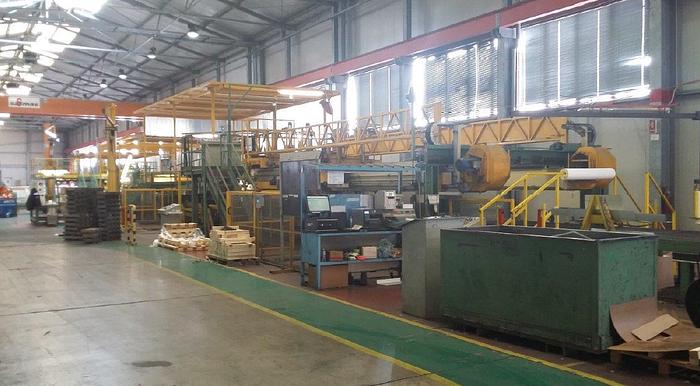

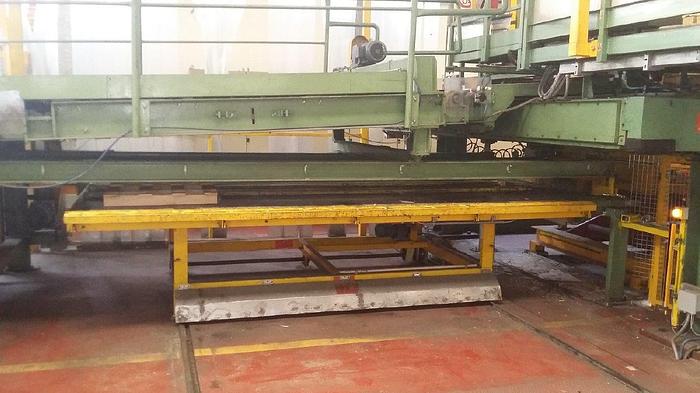

FIMI 2.5mm Multi-Blanking Line (Used) #3559

FIMI Brand Multi-Blanking Line with Rotary Shear for: Cold Rolled, Coated... etc. Materials; Stainless Steel; Aluminium... Coils: 300mm to 1850mm wide x .3mm to 2.5mm / max. 25ton Sheet Stacker: 4000mm+4000mm

Cut accuracy: in width .5mm, in length .5mm

75m / min

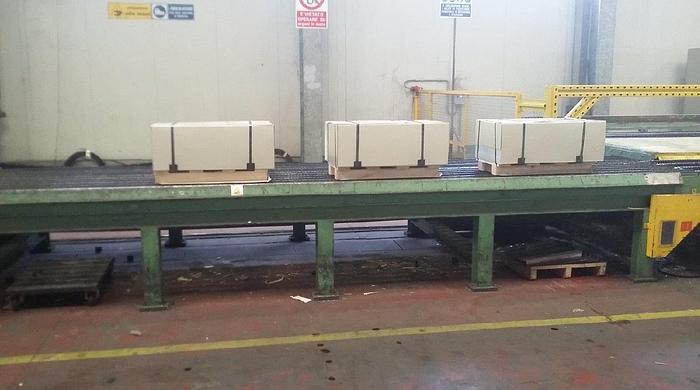

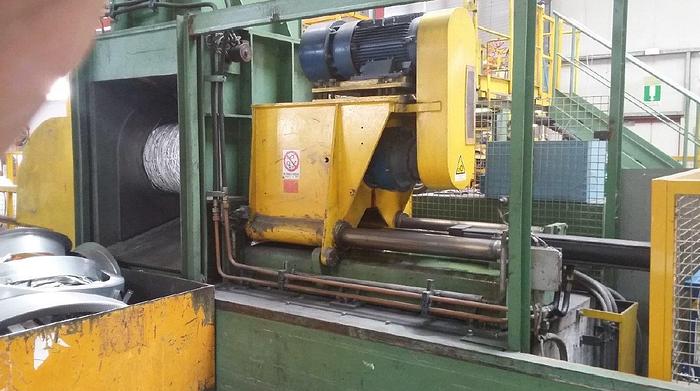

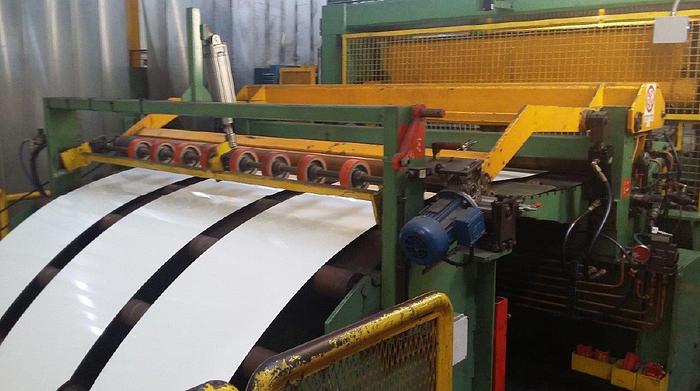

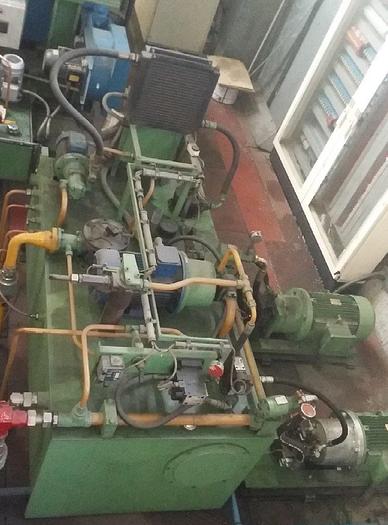

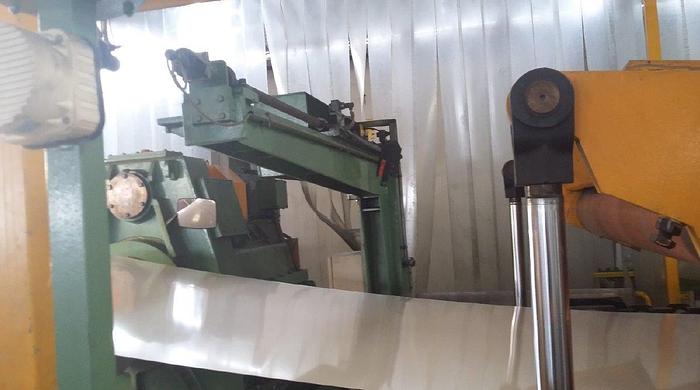

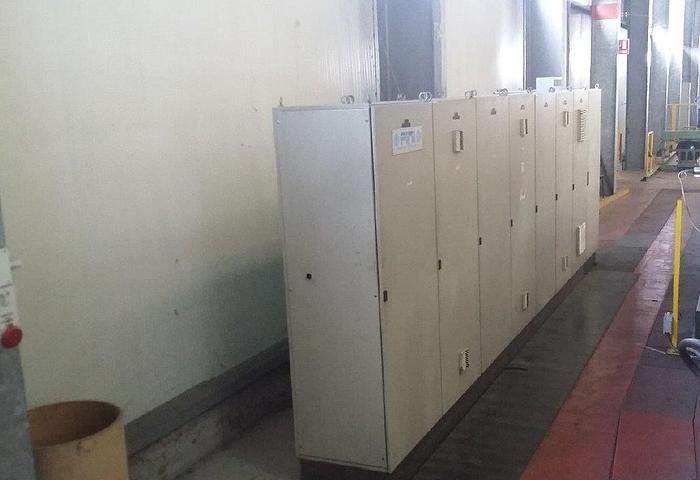

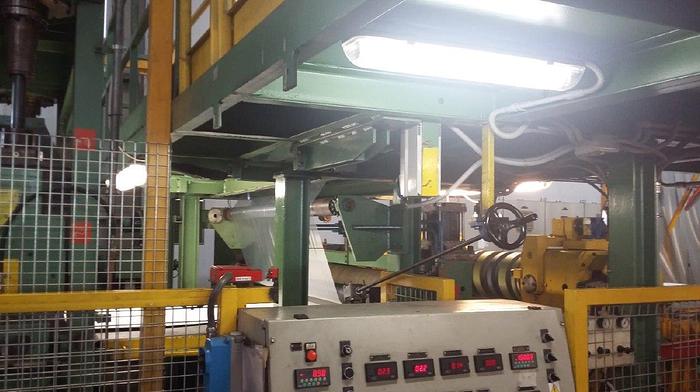

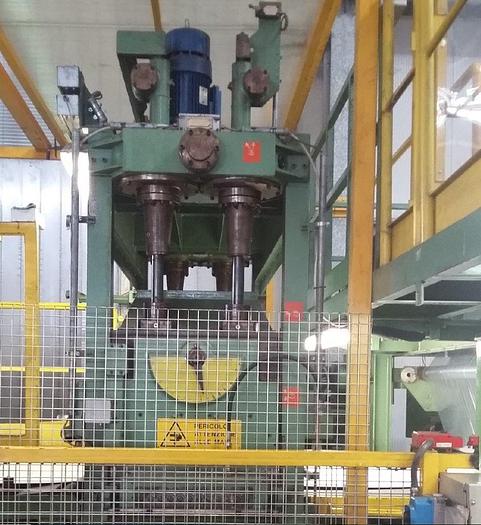

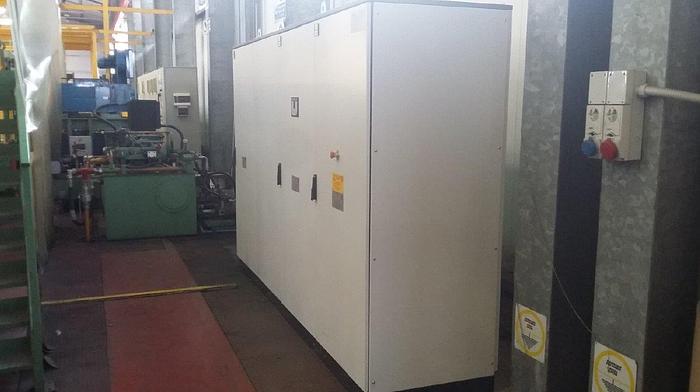

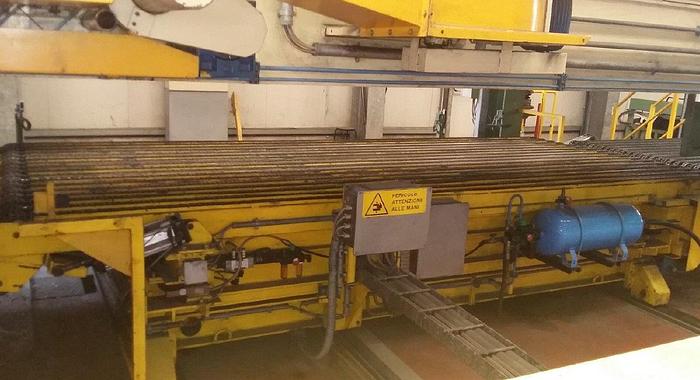

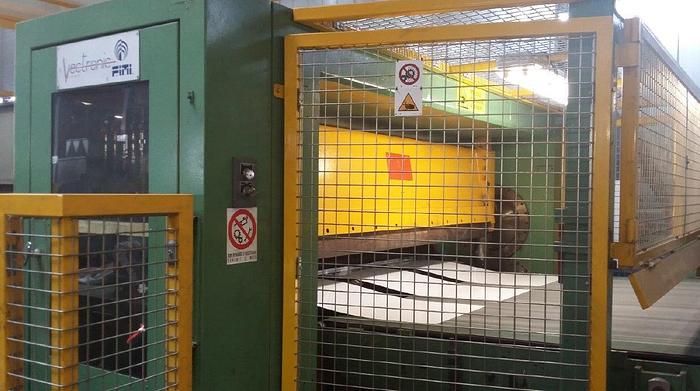

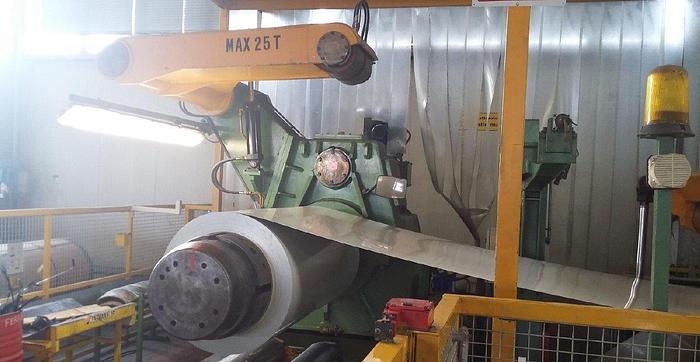

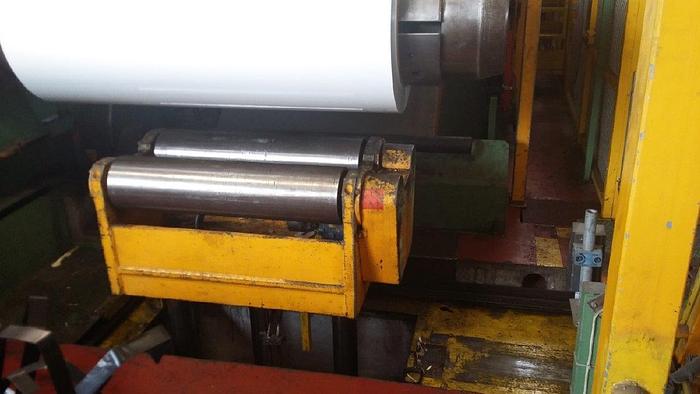

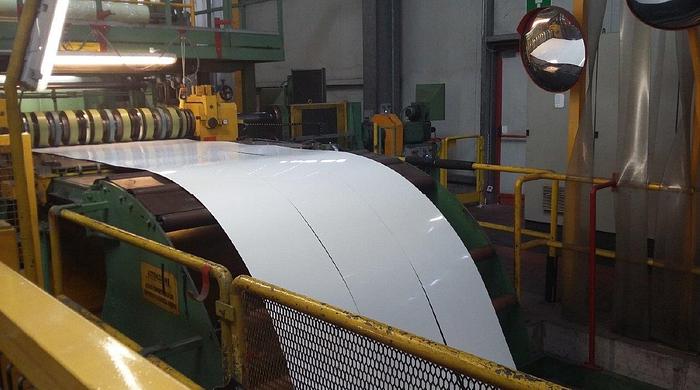

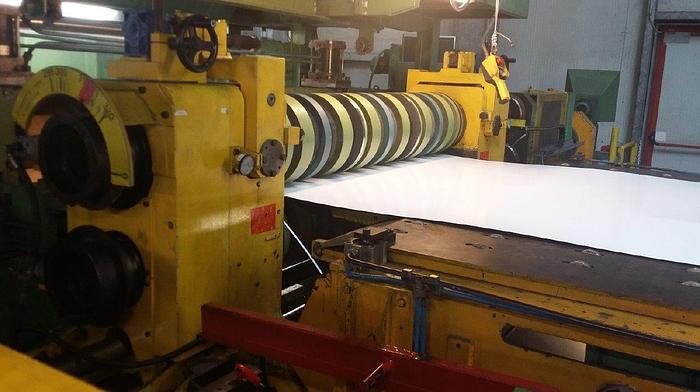

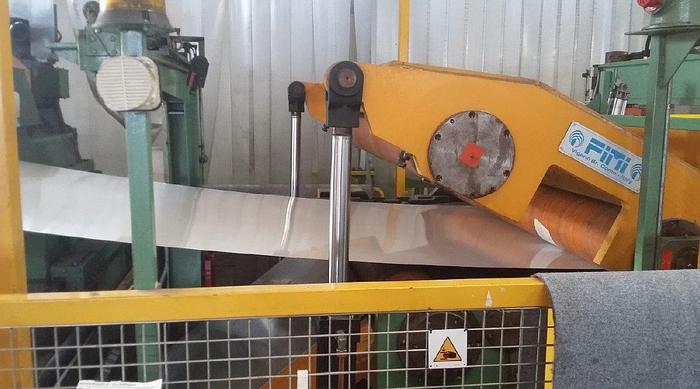

Built: 1995 (Dismantled, warehoused) Line Direction: Left to Right -- - Coil ID 508mm to 610mm - Coil OD max. 1900mm -- Products: 300mm to 4000mm sheets Sheet stack height incl. pallet: max. 560mm -- EQUIPMENT LIST • COIL LOADING CAR • COIL CENTERING STATION • DECOILER, OVERHUNG DRUM TYPE • SNUBBER ROLL • EDGE GUIDE • TELOSCOPIC TABLE • COIL THREADING UNIT • BUTT SHEAR • 6-HI 23-ROLL LEVELER / WORK ROLL DIA. 36mm, 184kW MOTOR, 7 BACK-UP ROWS • PROTECION FILM APPLICATOR • SLITTER FOR MAX. 3 CUTS (300mm to 600mm wide blanks can be made) • UP-DOWNSTROKING TABLE • SCRAP BALER • LOOP TABLE • ROTARY SHEAR • SHEET EVACUATION BELT #1 • SHEET EVACUATION BELT #2 • SCRAP COLLECTION BOX • AUTO. PALLET DISPENSER • AIR BLOW SHEET STACKER, 4000mm+4000mm = 8000mm • CHAIN TABLE #1 • SEMI-AUTOMATIC STRAPPING EQUIPMENT • WEIGHING EQUIMENT • CHAIN TABLE #2 • ELECTRICS, HYDRAULICS ETC.

--
