CATTANEO 2000ton Mech. Press #4213.10

Model: SE4-2000-4500-2500-LD

Year: 2000

Cinematismo:

LINK DRIVE

^ DRIVE KINEMATICS

Punti di spinta:

4

^ Number of connecting rods

Corsa slitta:

600mm

^ SLIDE STROKE

Dimensioni piani:

4500 x 2500 mm

^ x/y Dimension

Regolazione slitta:

300mm

^ SLIDE ADJUSTMENT

Altezza stampo dal portastampi cbra:

1200 mm

^ MAX. TOOL HEIGHT from toolholder

Piano Mobile:

Altezza 500mm / 2 carri T-track

^ MOBILE BOLSTER HEIGHT / 2 T-track Cars

Colpi al min:

10-20

^ SPM

Apertura montanti laterali:

2800mm

^ OPENIGS IN THE SIDES

Apertura max montanti frontali:

5000mm

^ MAX. OPENING IN THE FRONTAL UPRIGHTS

Potenza motore principale:

237Kw

^ MAIN MOTOR POWER

Cuscino nel Basamento:

no

^ CUSHION IN THE MACHINE BASEMENT

Peso Pressa :

440ton

^ MACHINE WEIGHT

+

Completa di:

transfer NORDA 3 assi / anno: 2006

e

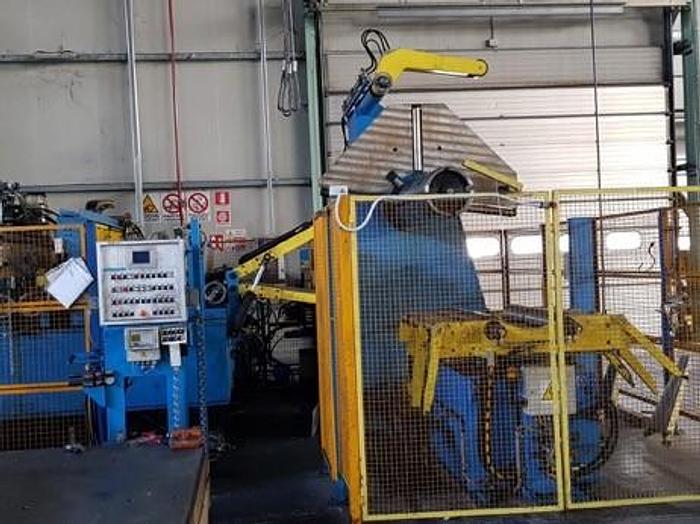

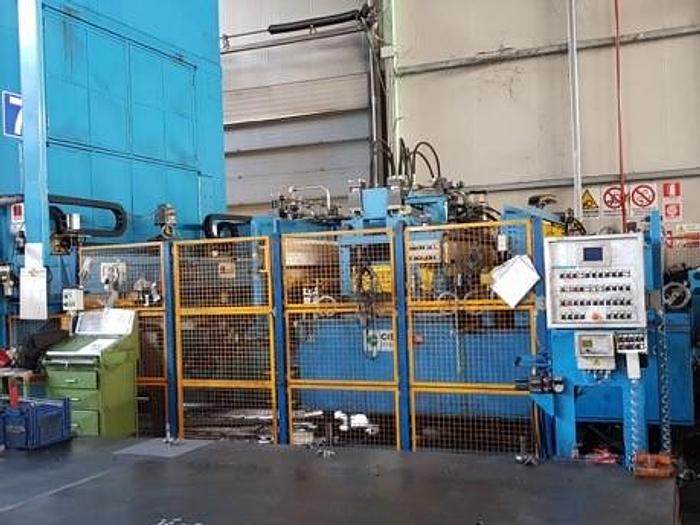

linea CISAM 1800x3 con cesoia

^ THE MACHINE IS COMPLETE WITH:

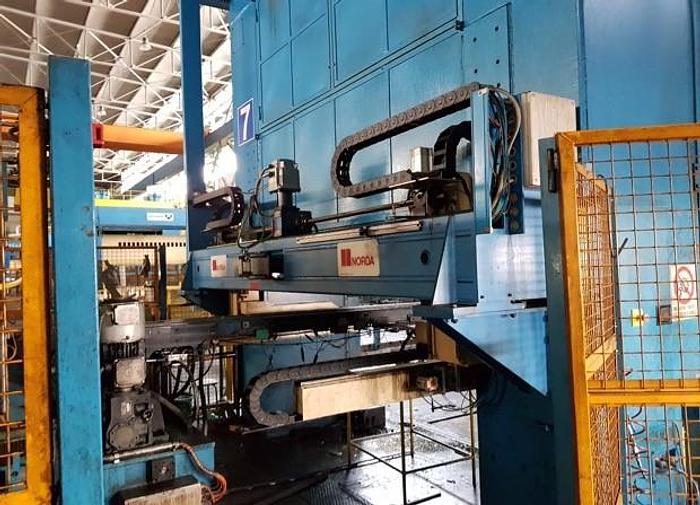

3-AXIS "NORDA" TRANSFER SYSTEM, OF 2006

&

"CISAM" FEEDS + SHEAR

-

-
