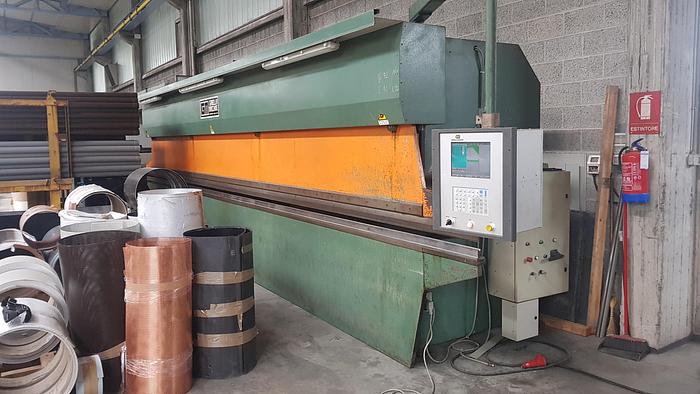

GABELLA 9100mm Press Brake (Used) #4210

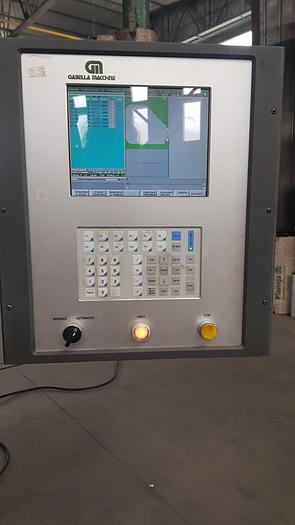

Recently updated    -- latest non-touch programmer & DC motor drive

80tonne   9100mm

Fixed 12mm slot

Excellent condition

Installed tooling:

• PUNCH with 26° angle

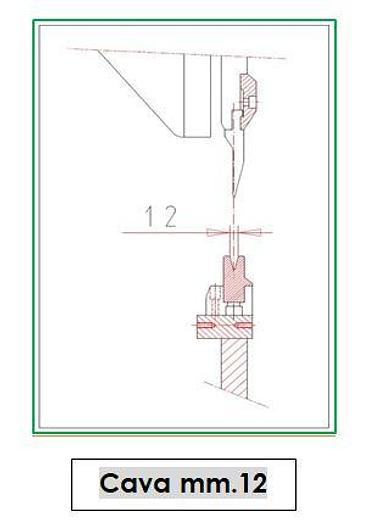

• DIE with 1 cavity, opening 12mm

OPTION:

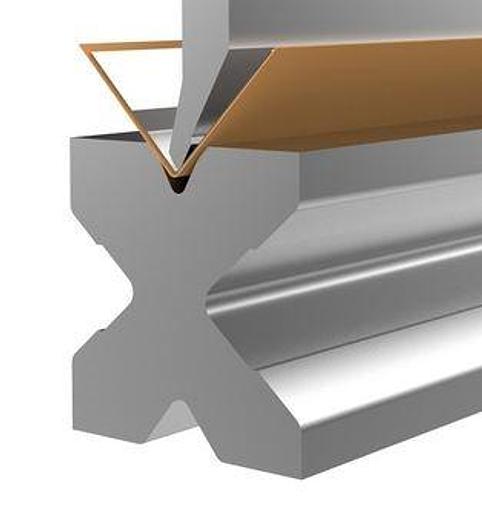

Dies^ to our drawing 80.6.01, with 4 cavities, opening 12–18–25–30mm ( > see last image )

-- Dies rotate acc. to the tickness of the material to process:

(400N/mm2)

Lamiera fino a / up to 0,8 mm di spessore: cava da 12 mm

Lamiera fino a / up to 1,2 mm di spessore: cava da 18 mm

Lamiera fino a / up to 1,5 mm di spessore: cava da 25 mm

Lamiera fino a / up to 2,0 mm di spessore: cava da 30 mm

OTHER OPTION:

Hemming tool to our drawing 80.6.35, lifted by pneumatic control with air regulation and automatic control. During the normal bending phase, the die remains in low position, to assist rigidity for a precise bend

Opening: mm 12

Offered "as is"

or, alt.:

totally revamped

with brand new electrics, new ESA Touch 15” controller, new motor, Lazersafe block-laser safety barrier, safety PLC etc.

-
